3. Key Technologies and Methods
This paper takes Maya as the modeling tool, uses Substance Painter as the mapping tool, and utilizes Unity3D as the development software. We built a virtual 3D TCM processing laboratory, where learners can interact with the 3D herb model through rotation, scaling, and transforming of their views. The core functionality of the platform lies in the virtual simulation of four classic TCM processing experiments, including cutting Polygonum multiflorum, stir-frying gardenia, steaming red ginseng, and salt-making Morinda officinalis.
3.1 Platform Overall Design
According to the functional requirements, the platform is divided into three modules, including the experimental module, the three-dimensional roaming module, and the user management module. The functional structure of the platform is illustrated in Fig. 1.

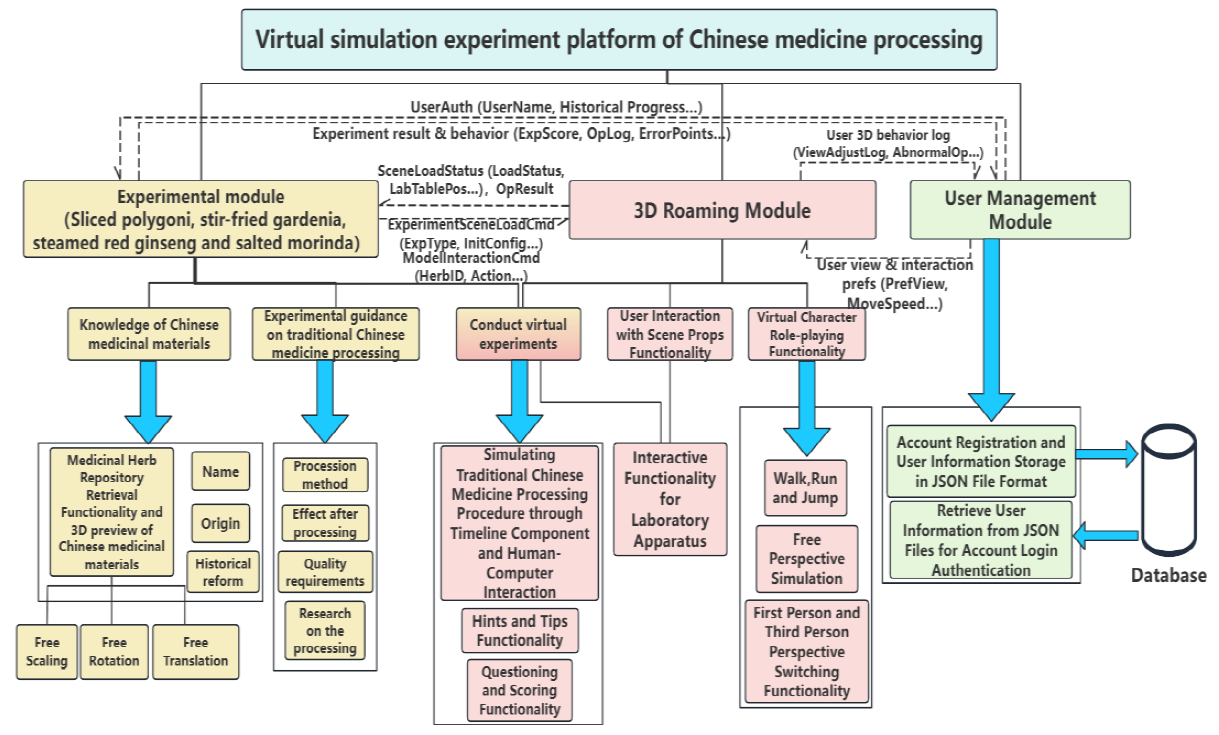

Functional structure of the platform.
3.1.1 Experimental module
This module comprehensively covers four experimental procedures, namely cutting Polygonum multiflorum, stir-frying gardenia, steaming red ginseng, and salt-making Morinda officinalis. Moreover, each of these experiments is subdivided into three distinct sub-modules. The first sub-module, the TCM information retrieval module, offers functionalities such as searching for prescription names, sources, historical evolution, TCM repository searches, and even a 3D preview of medicinal herbs. The second sub-module, the TCM processing knowledge learning module, aims to educate users on TCM processing methods, quality requirements, processing purposes, and related research. The third sub-module, the virtual simulation module of TCM processing, enables students to manipulate laboratory equipment under guidance to successfully complete herbal processing experiments. Throughout this process, pertinent questions, valuable procedural tips, and supplementary knowledge points are provided to enhance their learning experience.
3.1.2 Three-dimensional roaming module
In this module, users can immerse themselves in a virtual laboratory environment, assuming the role of students and performing various actions like walking, running, and jumping. They can seamlessly switch between first-person and third-person perspectives. This module incorporates timeline components and human-computer interaction to simulate the herbal processing experiments chronologically. Step-by-step animations and sound effects guide users through the process, ensuring correct participation. It also features a question-and-answer system with a scoring mechanism based on users’ progress and correctness, including timekeeping functionality.
3.1.3 User management module
This module provides login and registration functionalities, storing user information efficiently. JSON, known for its lightweight nature, serves as an ideal format for representing structured data concisely [13]. Leveraging the LitJSON component, registered user data is serialized into a database, facilitating efficient account management and storage.
3.2 3D Modeling
The Autodesk Maya software is the influential 3D animation software, which is more perfect than ordinary 3D visual effect [14]. In this work, all modeling of objects, including virtual TCM, experimental supplies and equipment have been achieved using Maya 2020 on the Windows 11 platform. The traditional method of building 3D models is primarily employed to add lines to the surface of the model, shaping the surface characteristics of virtual TCM. However, this method results in an increase in the total number of faces of the model, thereby leading to excessive consumption of resources during computer operations [15]. Therefore, we have used the polygon modeling method to establish low poly models as shown in Fig. 2. Besides, we also completed experimental display animations, such as cleaning, cutting, drying, stir-frying, steaming, and other animation effects.

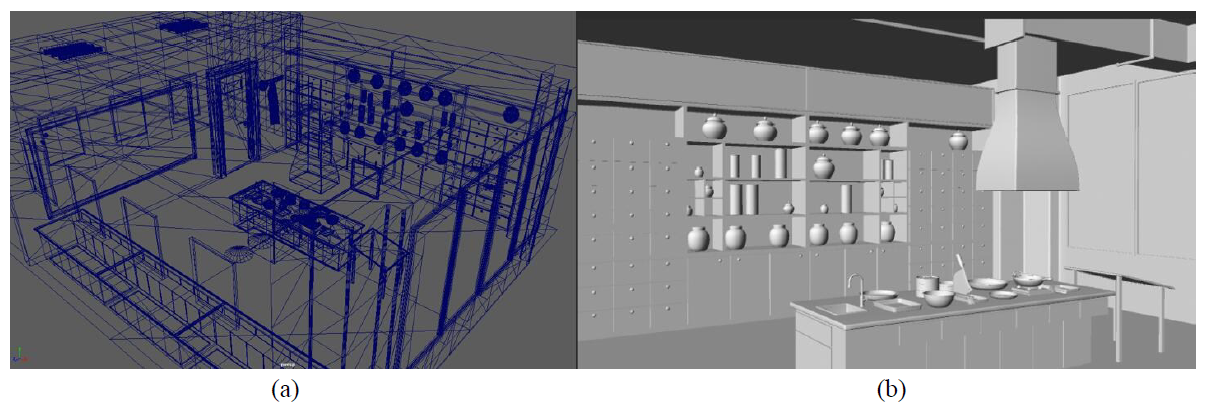

The 3D scene of TCM processing laboratory: (a) wireframe model and (b) solid model.
3.3 PBR Technology

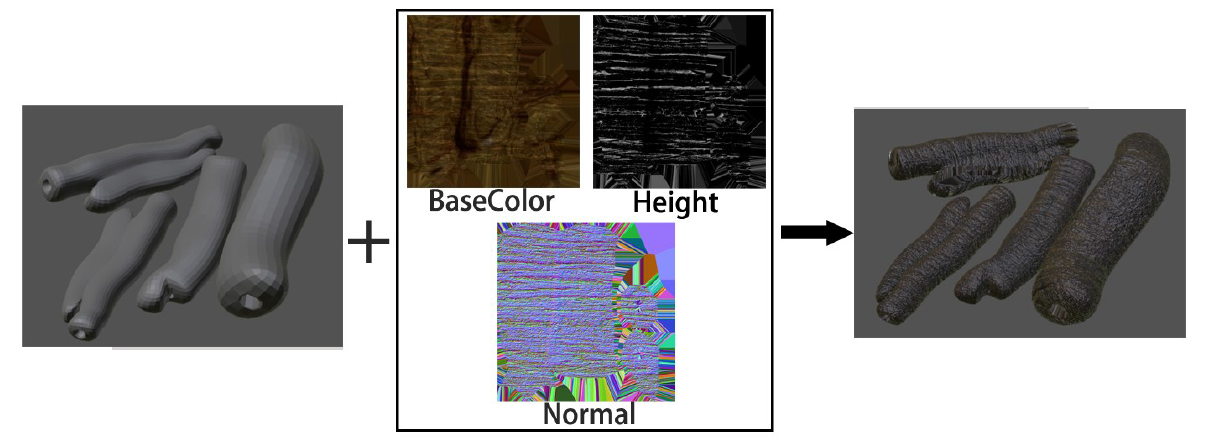

With the development of information technology, there still exist some differences between the real objects and the constructed ones. Physically based rendering (PBR) is an approach in computer graphics that seeks to render graphics in a way that more accurately models the flow of light in or over the real object [16]. In order to make the shape and surface texture of the constructed virtual TCM very similar to the real ones, we use a low-poly model with a high level of detail by PBR texturing to get better performance results. We take the precious Chinese medicinal herb Morinda officinalis as an example to illustrate the production process. Firstly, its 3D model is constructed and UV unwrapped in Maya, and then exported in an FBX file format. Secondly, PBR texture maps, including base color, height, and normal, are created in Substance Painter 2021. Finally, import them into Unity3D to view the rendering effect, as shown in Fig. 3. It can be seen that the 3D rendered image of the virtual Morinda officinalis is very close to the real image in terms of shape, color, and texture when compared to the real photograph.
Virtual Morinda officinalis production process.
3.4 Interaction Functions
3.4.1 Accurate character movement
Character movement is controlled by input from devices such as keyboards or controllers. The two-dimensional vector information from these peripheral inputs is applied as a force to the character's rigid body component, thereby achieving movement or jumping effects. In our platform, the control function for character movement is carefully designed and implemented to ensure that the two-dimensional vector information inputted through the keyboard can accurately map to the physical laws that control character movement in the real world. In Unity3D, adding a rigid body component to the character game object is the primary step to enable movement. Rigid body simulates object movement in the physics engine, considering factors like mass, gravity, and applied forces.
When the user holds down the "W" or "S" keys, the character moves along the Y-axis of the two-dimensional plane, with speeds ranging from -1 to 1. Similarly, holding down the "A" or "D" keys moves the character along the X-axis of the plane, with speeds also ranging from -1 to 1. These inputs are continuously updated, and through vector addition, the direction and magnitude of the force controlling the character's movement are determined. However, when the user simultaneously holds down keys from different axes, such as "W" and "D", the resulting vector forms a [TeX:] $$45^{\circ}$$ angle with the positive X-axis, but its length is [TeX:] $$\sqrt{2}$$ instead of 1. This leads to a faster movement speed along the diagonal in the first quadrant than along the X or Y axes, which is not the expected outcome. To more realistically simulate character movement in the real world, it's necessary to dynamically transform the square region formed by all two-dimensional vectors input by the user into a circular region. To achieve this, each point (x, y) within the square region needs to be projected onto the corresponding point (u, v) within the circular disk [17]. The transformation formula is as follows:
where u represents the calculated length of the vector on the new X-axis, and v represents the calculated length of the vector on the new Y-axis.
It's worth noting that this mapping is smooth and reversible. Fig. 4 illustrates the process of converting vectors read from the keyboard into the final vectors assigned to the virtual character actions. By preprocessing the data received from peripherals, the absolute value of the magnitude of the new vector always remains between 0 and 1. This prevents inconsistencies between the expected and final outcomes caused by different input values. It makes character actions more easily controlled by users, facilitating the subsequent development of experiments.

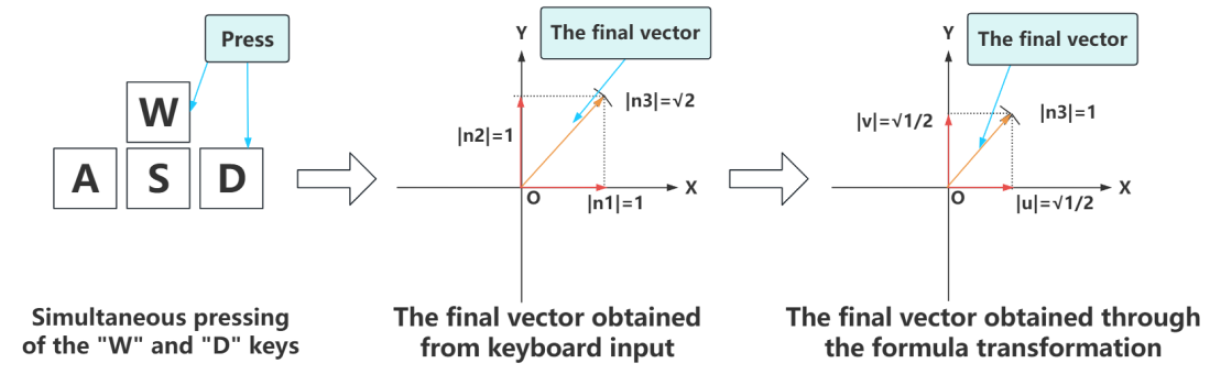

Vector value correction process.
3.4.2 Dynamic adjustment of virtual camera
In case of the existing camera input approach, such as Unity3D, every value of X, Y, and Z has to be input as a figure by each coordinate [18]. In contrast, our platform allows the virtual camera to automatically adjust its angle and position relative to characters based on collisions with objects in the scene. The execution steps are as follows: firstly, a camera object positioned behind the character model serves as the third-person perspective camera, tracking the character's movements. Secondly, to achieve smooth camera tracking, we utilize the interpolation functions (Lerp and Slerp functions) provided by the Unity API. These functions can uniformly control the changes in position and orientation of objects, such as the rotation of a robotic arm [19]. Finally, by acquiring the character model's position and rotation information in the script and modifying the camera's position using interpolation techniques and adjusting rotation values by modifying quaternions. Consequently, regardless of the character's actions, the camera adjusts its position and orientation accordingly, providing a natural viewing experience.

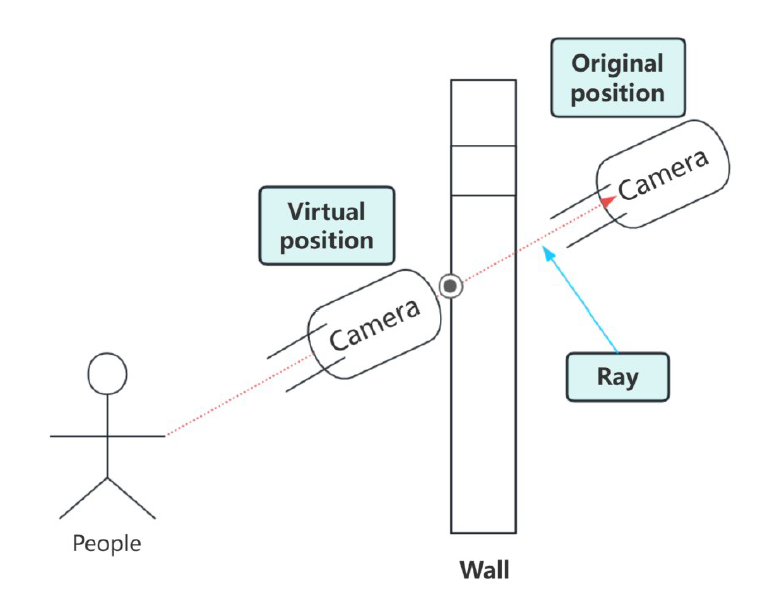

However, when the character moves into narrow areas such as corners or tight spaces, the camera, due to the need to maintain a certain relative distance from the character, may become obstructed by the model itself or blocked by obstacles in front, affecting the field of view. To address this issue, a line casting method is employed to continuously assess whether there are any obstacles between the camera and the character, thereby dynamically adjusting the actual position of the camera. In Fig. 5, the "People" represent virtual characters within the platform. To prevent the camera from penetrating models, a ray needs to be continuously emitted from the character (depicted in red in the diagram) towards the camera. If the ray collides with actual objects within the scene, such as walls, the camera's position will be updated to the collision point. It is important to note that the direction of the ray should not point from the camera towards the character. Otherwise, the camera's position will update to outside the wall, resulting in the user's view being obstructed by scene objects.
Display of camera position changes.
The line cast method has more precise directionality compared to capsule cast. It effectively solves the occlusion problem of traditional fixed viewing angles in narrow spaces through precise collision detection and position correction mechanisms, providing users with a more natural virtual experimental observation experience. The algorithm is described as follows: first, add Box Collider components to the camera and character objects respectively to build collision detection foundation, then define the direction of the ray from the character's position to the camera's position by obtaining the world coordinates of the character and camera in the script, and then call the Physics. Linecast() function to perform ray casting to detect the collision between the ray and objects in the scene (such as walls, experimental appliances, etc.) in real time. If a collision is detected, immediately adjust the camera position to a point where the collision point is pushed forward 10 cm in the opposite direction of the ray, in order to avoid the camera model penetrating the scene objects, ensure that the user's perspective is always within a reasonable visual range, and improve the realism and smoothness of the interaction process. The function code is shown in Fig. 6.

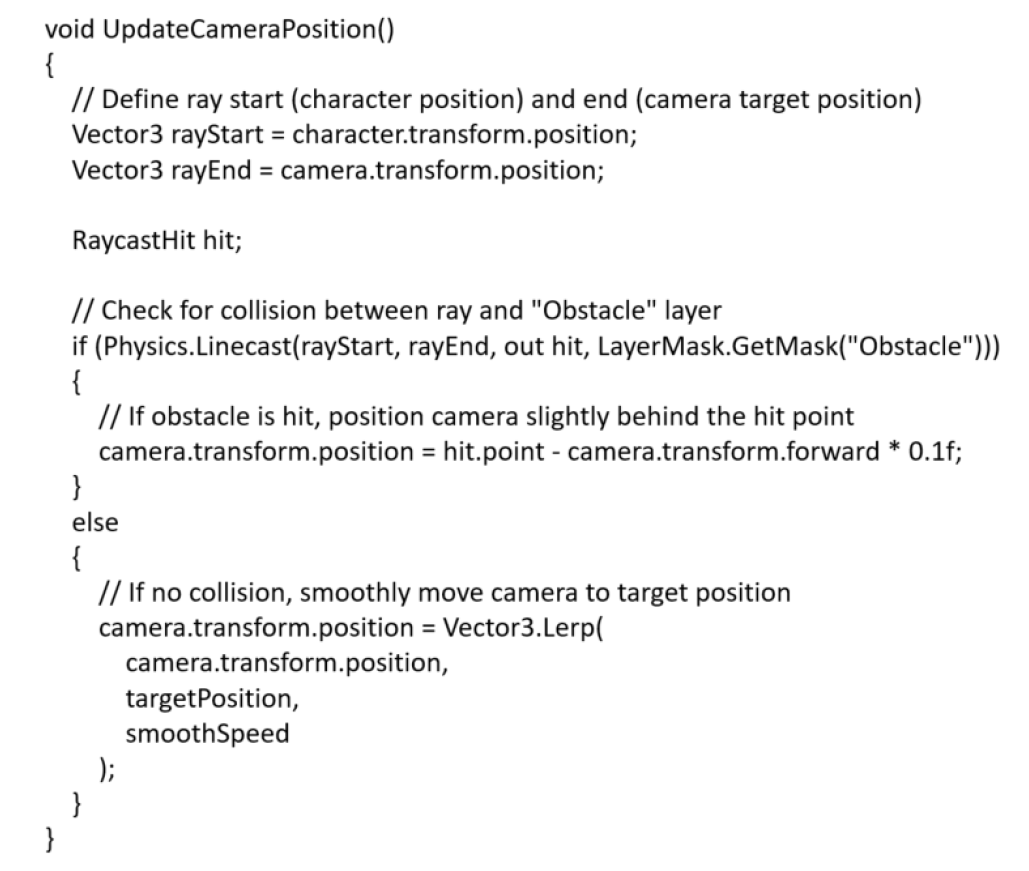

The function code of the line casting method.
3.4.3 Interactive ray casting
Object interaction primarily relies on casting a ray from the camera, passing through the mouse cursor on the screen, to detect collisions with target objects within the scene [20]. Using the ray tracing capabilities provided by the Unity engine, simulate the speed and accuracy of character interaction with objects [21]. In our platform, all objects within the scene are equipped with colliders. Using a virtual camera as the source point and the mouse cursor as the pathway, a ray is emitted to perform collision detection with experimental apparatuses within the scene, serving as the primary mode of interaction between users and objects. This ray enables three-dimensional objects in the scene to detect whether the user's mouse cursor enters, exits, or clicks on them. Subsequently, different functions are executed based on these three conditions, enabling features such as highlighting objects when the user moves the cursor over them and triggering specific actions when the user clicks on objects to use them for experiments.
3.5 Applying the Timeline Component
The Unity engine offers a robust design solution akin to the Timeline component, enabling the creation of interactive storylines [22] encompassing animations, visual effects, and more. In simple terms, the Timeline component consists of a "script" and an "actor." The "script" includes multiple tracks, each corresponding to a specific element. For example, the "question track" controls the appearance and disappearance of all questions in the preparation experiment. Each track is divided into transaction blocks, each containing a code file. The code is divided into three main sections: "before the transaction occurs," "during the transaction," and "after the transaction occurs."
The "actor" corresponds to the scanner in the Timeline component, starting from zero and executing each transaction block's code content in three sections until all transaction blocks are completed. This signals the end of the script and the completion of the preparation experiment. Scripts are pre-designed by the software creator for various traditional Chinese medicine preparation experiments. Because different transaction blocks on different tracks can execute different code functions within the same clock cycle. This diverse combination of content enables designers to faithfully replicate the process of traditional Chinese medicine preparation and enhance user interactivity. Below is a schematic representation of the "script" and "actor" architecture within the Timeline component, as depicted in Fig. 7.

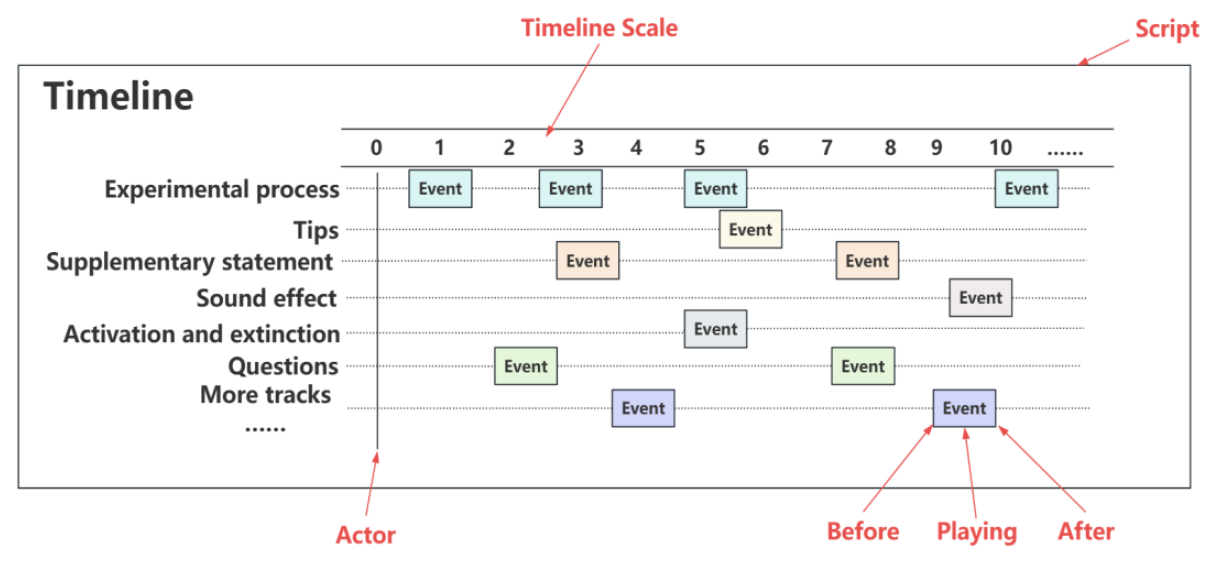

The overall design of the timeline script.
When the scanner (actor) scans through each transaction block, it executes the code contained within, which is divided into three sections: "pre-transaction," "during transaction," and "post-transaction." For interactive transactions requiring player input, when the timeline moves to the "pre-transaction" state, the timeline's speed is reduced to zero, and it transitions to the "during transaction" state to continuously monitor user interaction inputs. During the execution of experimental steps, the system restricts character movement and viewpoint based on user input. For example, when the timeline moves to a transaction block on the experiment procedure track, it checks whether the correct experimental equipment is used. If correct, the timeline's speed returns to normal, unlocking user movement and viewpoint restrictions to continue the preparation experiment. Otherwise, the timeline speed remains at zero. The partial timeline script diagram of the salt-making Morinda officinalis is shown in Fig. 8. Selecting the experimental process track as an example, the corresponding simulation effect triggered by the change of timeline in our platform is shown in Fig. 9.

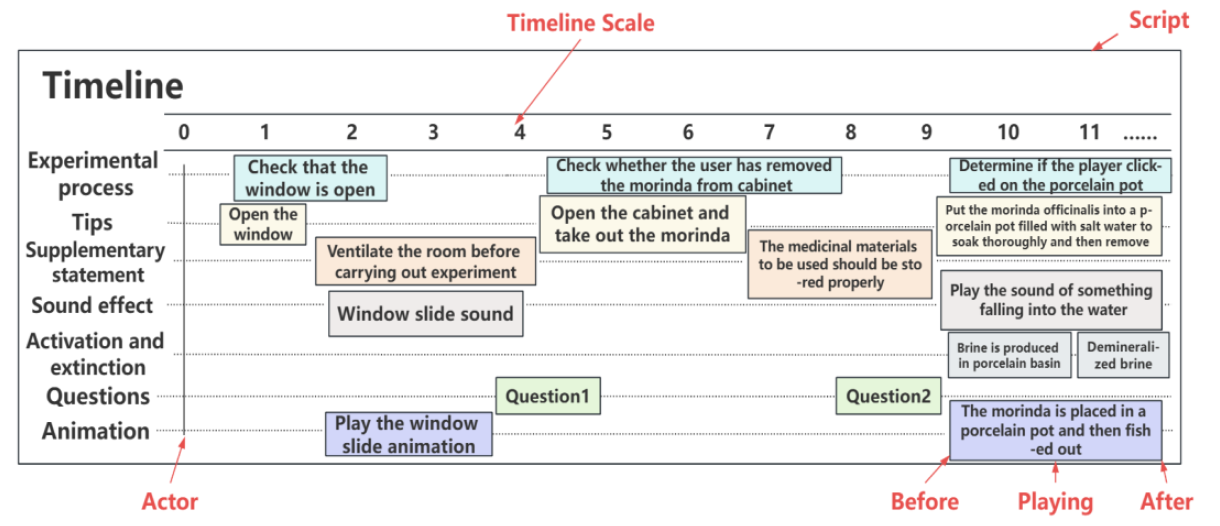

The partial timeline script diagram of the salt-making Morinda officinalis.

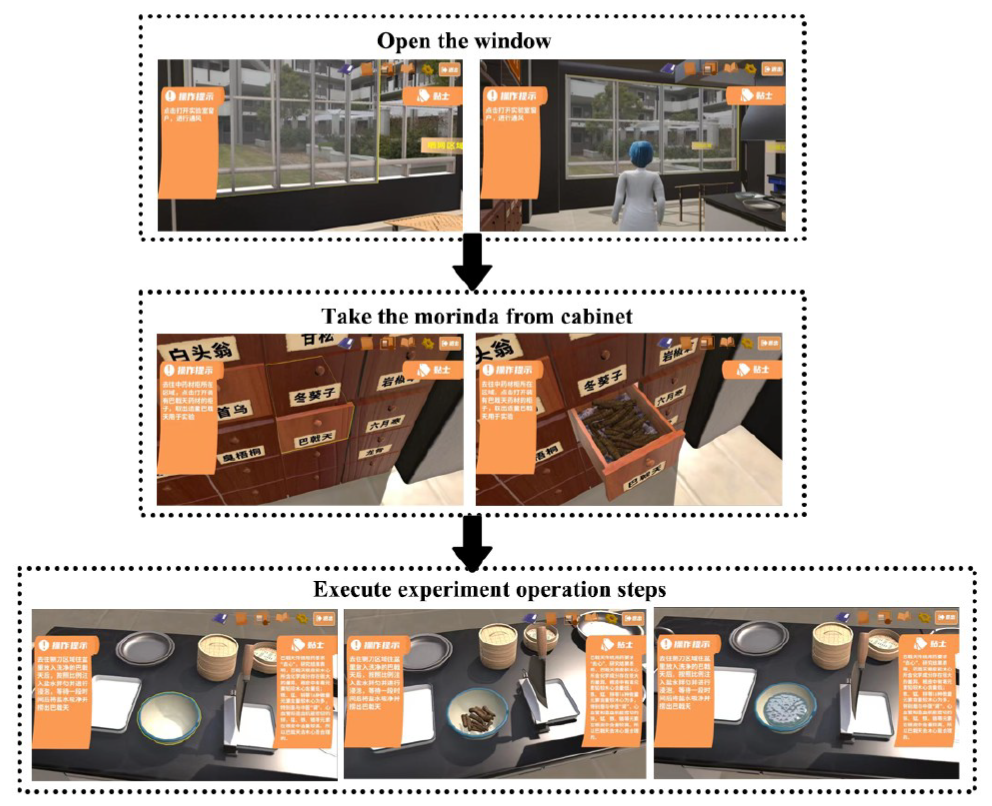

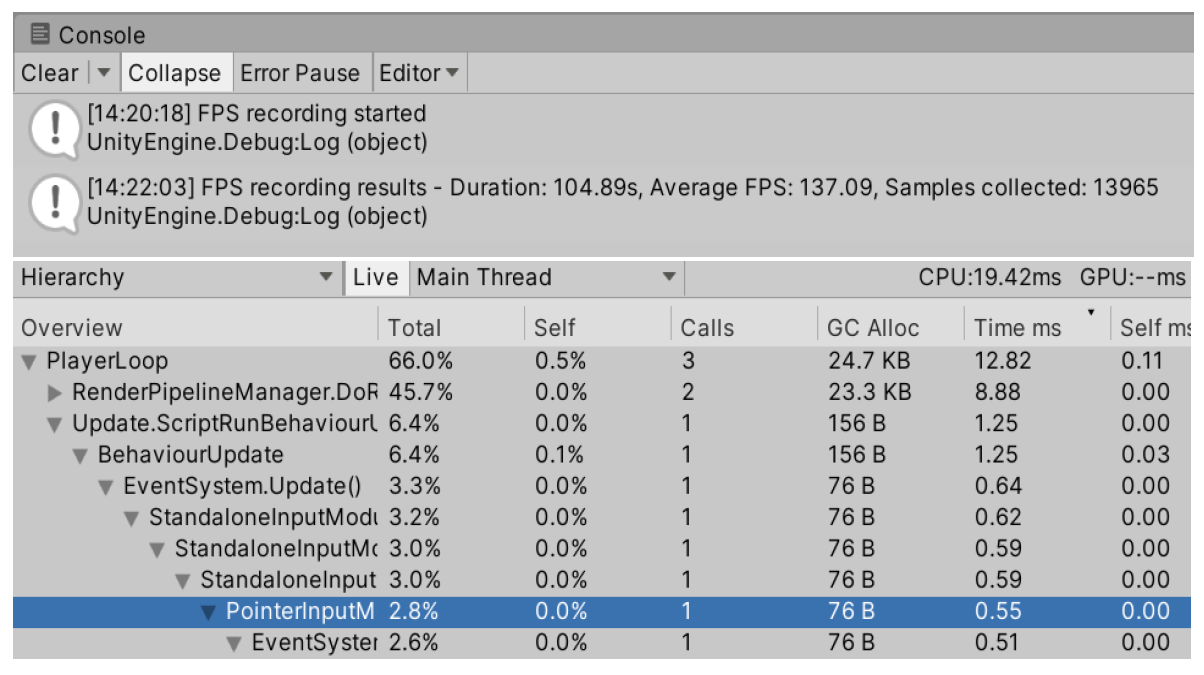

The platform simulation effect.
