Energy Efficiency Maximization in mmWave Wireless Networks with 3D Beamforming

1. Introduction

INCREASING demands for high data rate in the 5th generation (5G) cellular systems need much more bandwidth compared to current cellular networks. The millimeter wave (mmWave) frequency bands have recently attracted a lot of attentions due to large bandwidth that they offer [1], [2]. However, in practice they encounter some challenges including high path loss, high power consumptions and the blockage effect caused by buildings and human bodies [3]–[5]. Another emerging technique in 5G wireless networks is 3D beamforming (3DBF) which utilizes active large antenna arrays to control the antenna patterns in a 3D space [6]. In fact, in the 3DBF more degrees of freedom are exploited to adjust the beam patterns in both horizontal and vertical (tilt angle) domains to improve the network performance in term of spectral efficiency and energy efficiency (EE) [6], [7]. On the other hand, due to the short wavelength of the mmWave bands, a large number of antenna elements can be packed in a small area arrays which makes them suitable for employing the 3DBF.

One of the recent powerful mathematical techniques that has been proposed for analyzing the performance of cellular networks is stochastic geometry (SG) [2], [9], [10]. This technique is widely used in evaluating different network performance metrics including coverage, capacity, spectral efficiency and the EE in the microwave as well as mmWave systems. An SGbased mathematical framework to model random blockage in the mmWave networks has been proposed in [3] in which the authors proved that the distribution of the number of the blockages in a link follows a Poisson distribution. In[2], the SG approach was employed for analyzing the coverage and rate of the mmWave networks and it was shown that the mmWave networks achieve a comparable coverage but higher data rates than microwave networks. Also, the SG technique was employed in [11] to evaluate the performance of multi-tier networks and it was shown that a sufficiently dense mmWave cellular network can outperform microwave cellular networks in terms of the coverage probability. In addition, the downlink of a multi-tier heterogeneous mmWave cellular network in a Nakagami fading channel was investigated by a SG approach in [12]. In [13], the effect of user association and power control on the coverage and EE of the mmWave system is investigated. The maximization of the EE by considering a constraint on the coverage probability is studied in [14] which provides insights for deployment of an energy efficient mmWave network.

In this paper, we address the problem of the 3DBF in the mmWave networks. In particular, our work focuses on the EE maximization in the mmWave networks by tilt angle optimization at the BSs that are equipped with active antenna systems. To the best of our knowledge, this problem has not been studied before in literature. Furthermore, for our analysis, we use a stochastic geometry approach. In this approach, the location of BSs are modelled by a homogeneous Poisson point process (PPP). In addition, we use a modified model for the propagation channel that properly incorporates the existence of blockage effect in the environment. Using the above assumptions and modeling, we first evaluate the signal-to-noise-plus-interference ratio (SINR) coverage probability and then derive the EE of the network as a function of the BSs’ tilt angle.

We solve the above problem for two different scenarios. In the first scenario, a homogeneous network is studied where multiple macro base stations (MBSs) serve a number of macro-users. Applying the SG technique, we compute the coverage probability and the EE of the network. Afterwards, the optimum tilt angle that maximizes the EE is found through an optimization problem. Because of the complex form of the objective function, this optimization problem is hard and can not be solved efficiently. The optimal value is then obtained by exhaustive search over the available range of tilt angles. In order to reduce the complexity, we propose an efficient algorithm based on bisection method which has a close performance to the exhaustive search but with a considerably reduced complexity.

The second scenario that we examine in this paper includes a two tier heterogeneous network (HetNet) composed of multiple MBSs and femto base stations (FBSs) which are modeled by two PPPs with different densities. To limit interference, we define a sleep region around each MBS so that the FBSs in the sleep regions do not transmit any signal. Using this idea, the coverage of the network is evaluated and the EE is calculated. Then, the MBS tilt angle and the radius of the sleep regions are jointly optimized through an optimization problem for maximizing the EE. We also propose an efficient method which considerably reduces the computational complexity. It is shown that the proposed efficient method has only a small degradation in the performance with respect to the optimal solution obtained by exhaustive search. In addition, in the second scenario, we provide a lower bound on the coverage probability of the femto users that is very tight.

Finally, through numerical simulations, we evaluate the performance of the proposed schemes and confirm that in a mmWave network, using the 3DBF technique with optimized tilt angle considerably improves the performance of the network in terms of the EE. Our simulations also demonstrate the effectiveness of the proposed low-complexity optimization methods.

The rest of the paper is organized as follows: In Section II, the system models of the homogeneous network and HetNet are described. Section III derives the coverage probabilities and EE of two scenarios. In Section IV, the EE maximization problem is formulated and the low-complexity solving method is presented. Numerical results are presented in Section V, and finally Section VI concludes the paper.

II. SYSTEM MODEL

We consider downlink of a multi-cell mmWave cellular network under two scenarios: A homogeneous network composed of multiple MBSs, and a two tier HetNet consisting of multiple MBSs and multiple FBSs that both the MBSs and FBSs utilize same frequencies in the mmWave bands. The path loss of the channels between the MBSs and macro users are given by [3]

where C_L and _N N account for the path loss in a reference distance for line of sight (LOS) and non-LOS (NLOS) links, respectively, r is the distance between a BS and its associated user, and [TeX:] $$ \alpha_{L} $$ and [TeX:] $$ \alpha_{N} $$ N denote the path loss exponents for LOS and NLOS links, respectively. Links are in the LOS condition with probability [TeX:] $$ P_{L}(r)=e^{-\beta r} $$ where β indicates the intensity of the blockage effect; and in the NLOS condition with probability [TeX:] $$ P_{N}(r)=1-P_{L}(r) $$ [3]. Also, it is assumed that the link between the MBSs and the femto users and that between FBSs and macro users are always in the NLOS condition. In addition, since femto users are usually located indoor, the channel between a femto user and interfering (non-serving) FBSs are assumed to be NLOS.

To design the 3DBF techniques, we need a model for the vertical and horizontal antenna patterns at the MBSs. In this paper, for the vertical plane, we adopt a model presented in [15] in which each MBS’s antenna gain is expressed as

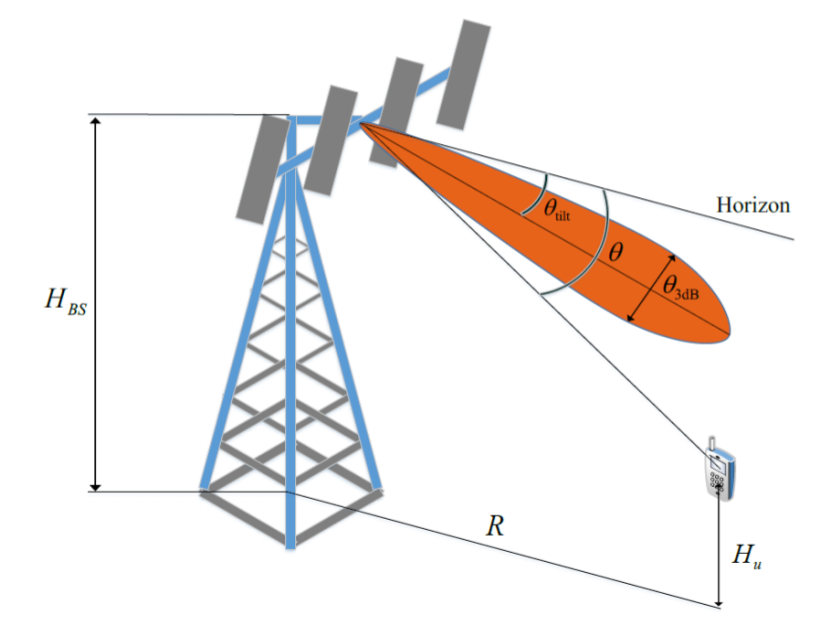

where [TeX:] $$\theta \geq 0 $$ is the angle between the horizon and the line connecting the MBS to the user (see Fig. 1). In addition, [TeX:] $$ \theta_{\text { till }} \geq 0 $$ [TeX:] $$ \theta_{3 \mathrm{dB}} $$, and SLL_dB stand for the array tilt angle, the 3dB beamwidth, and the side-lobe level of the MBS antenna pattern in the vertical plane, respectively [16]. By defining [TeX:] $$ H_{\mathrm{eff}} \stackrel{\Delta}{=} H_{\mathrm{BS}}-H_{u} $$ ; where H_BS and [TeX:] $$ H_{u} $$ u represent the MBSs’ and users’ antenna heights, respectively, (2) can be rewritten as

where R equals the horizontal distance between the MBS and the user. It is assumed that all FBSs’ and the users’ antennas have an omni-directional pattern in the vertical domain.

For modeling the MBS’s and macro users’ antennas horizontal pattern, a sectorized pattern is utilized that has constant gains of M and m in its main-lobe and side-lobe, respectively [2]. The total antenna gain of a transmitter to receiver link in the horizontal plane is modelled by a random variable D which takes four values of [TeX:] $$ d_{1}=M_{t} M_{r} $$, [TeX:] $$ d_{2}=M_{t} m_{r} $$,[TeX:] $$ d_{3}=m_{t} M_{r} $$, and [TeX:] $$ d_{4}=m_{t} m_{r} $$ with probabilities [TeX:] $$ p_{1}=c_{t} c_{r} $$, [TeX:] $$ p_{2}=c_{t}\left(1-c_{r}\right) $$, [TeX:] $$ p_{3}=\left(1-c_{t}\right) c_{r} $$ and [TeX:] $$ p_{4}=\left(1-c_{t}\right)\left(1-c_{r}\right) $$), respectively. The subscripts t and r stand for the transmitter (MBS) and receiver (macro user), respectively. In addition, we have [TeX:] $$ c_{t}=\varphi_{t} / 2 \pi $$ and [TeX:] $$ c_{r}=\varphi_{r} / 2 \pi $$, in which [TeX:] $$ \varphi_{t} $$ and [TeX:] $$ \varphi_{r} $$ r indicate the horizontal beamwidth of the transmitter and the receiver antennas, respectively. Also, we assume that antennas horizontal pattern for FBS and femto users are [TeX:] $$ M^{f} $$ and[TeX:] $$ m^{f} $$ in its main-lobe and side-lobe, respectively with [TeX:] $$ \phi_{t}^{f} $$ and [TeX:] $$ \phi_{r}^{f} $$ as s a horizontal beamwidth of the FBSs and femto users, respectively. We denote total antenna gain of the FBS and femto user by [TeX:] $$ D^{f} $$ which takes value [TeX:] $$ d_{i}^{f} $$ with probabilities [TeX:] $$ p_{i}^{f} \text { for } i=1, \cdots, 4 $$, where they can be calculated in similar manner as the MBS and macro user. In the following, we explain these two scenarios for the mmWave network.

A. Homogeneous Cellular Network

In this scenario, only MBSs exist in the network whose positions are modeled by a homogeneous [TeX:] $$ \operatorname{PPP} \Phi_{m} $$ with denisty [TeX:] $$ \lambda_{m} $$ From the Slivnyak theorem [17], to evaluate the performance of the network, it is sufficient to consider a typical user located at the origin and analyze its performance. The received signal at the typical user can be written as

where P_m represents the transmission power of each MBS and [TeX:] $$ r_{j, 0} $$, [TeX:] $$ L_{m}\left(r_{j, 0}\right) $$ and [TeX:] $$ h_{j, 0} $$ indicate the distance, the path loss and the small scale fading between the jth MBS (j = 0 is for the MBS that serves the typical user) and the typical user, respectively, D_j is the total horizontal antenna gain between the jth MBS and the typical user, G_j = [TeX:] $$ G\left(r_{j, 0}, \theta_{\mathrm{tilt}}\right) $$shows the vertical antenna gains, s_j equals the transmitted signal of the jth MBS, [TeX:] $$ n \sim \mathcal{C} \mathcal{N}\left(0, \sigma^{2}\right) $$ stands for the noise, and the location of the jth MBS is denoted by X_j. We consider Nakagami-m fading in which fading power [TeX:] $$ \left|h_{j, 0}\right|^{2} $$ follows a Gamma distributio [TeX:] $$ \Gamma(m, 1 / m) $$ with the following complementary cumulative distribution function (CCDF)

In all equations, index 0 is used for identifying the typical user and also the MBS that serves this user

B. Two Tier Heterogeneous Networ

In this scenario, in addition to the MBSs, a number of FBSs exist in the network. The locations of the MBSs and FBSs are modeled by two independent homogeneous [TeX:] $$ \operatorname{PPP} \Phi_{m} $$ and [TeX:] $$ \Phi_{f} $$ with densities [TeX:] $$ \lambda_{m} $$ and [TeX:] $$ \lambda_{f} $$, respectively. Location of the jth FBS is denoted by Y_j.In this case, we analyze the performance of a typical macro user as well as a typical femto user. It is assumed that femto users are uniformly distributed within the coverage area of its serving FBS, which has a circular area of radius R_f. Defining the signal attenuation caused by walls as [TeX:] $$ \ell_{W} $$, the attenuation of the links between the MBSs and the typical indoor femto user and that between non-serving FBSs and the typical indoor femto user are represented as [TeX:] $$ \ell_{W} $$ and [TeX:] $$ \left(\ell_{W}\right)^{2} $$, respectively. To decrease interference on the macro users, we consider a sleep region with radius R_c around each MBS, where the FBSs lying in this region are forced to enter a sleep mode and do not transmit any signals. In other words, if the distance of a FBS from each MBS is less than R_c, it will be turned off. By considering the above assumptions, the received signal at the typical macro user and femto user respectively become

where [TeX:] $$ r_{j, 0}^{m} $$ and [TeX:] $$ r_{j, 0}^{f m} $$ denote the distance between the jth MBS and the typical macro user and that between the jth FBS and the typical macro user, respectively, [TeX:] $$ r_{j, 0}^{f} $$ and [TeX:] $$ r_{j, 0}^{f m} $$ show the distance between the jth FBS and the typical femto user and that between the jth MBS and the typical femto user, respectively, [TeX:] $$ \Phi_{f}^{\prime} $$ indicates the modified version of [TeX:] $$ \Phi_{f} $$ after excluding the FBSs in radius of R_c of each MBS,[TeX:] $$ L_{m}^{f}\left(r_{j, 0}\right), D_{j}^{f m} $$ and [TeX:] $$ g_{j, 0}^{f} $$ represent the path loss, the total antenna gain in the horizontal domain and the small scale fading between the typical macro user and the jth FBS, respectively, x_j stands for the transmitted signal of the jth FBS,[TeX:] $$ g_{j, 0} $$ and [TeX:] $$ L_{f}\left(r_{j, 0}^{f}\right) $$ equal the small scale fading and the path loss between the typical femto user and the jth FBS, respectively, [TeX:] $$ D_{j}^{f} $$ shows the total antenna gain between the jth FBS and the typical femto user, [TeX:] $$ L_{f}^{m}\left(r_{j, 0}^{m f}\right), D_{j}^{m f} $$ and [TeX:] $$ h_{j, 0}^{m} $$ represent the path loss, the total antenna gain in the horizontal domain and the small scale fading between the typical femto user and the jth MBS, respectively, P_f equals the transmitted power of the jth FBS, and n and [TeX:] $$ n^{\prime} $$ are the complex Gaussian noise as [TeX:] $$ \mathcal{C} \mathcal{N}\left(0, \sigma^{2}\right) $$. We define the values of variable [TeX:] $$ D^{f m} $$ by [TeX:] $$ d_{i}^{f m}, i=1, \cdots, 4 $$ with probabilities [TeX:] $$ p_{i}^{f m} $$ (calculations are similar to MBS and macro users total antenna gain) [TeX:] $$ D^{m f} $$ takes values [TeX:] $$ d_{i}^{m f} $$ with probabilities [TeX:] $$ p_{i}^{m f} $$. Also, since these links are in NLOS condition,[TeX:] $$ g_{j, 0}, g_{j, 0}^{f}, h_{j, 0}^{m} $$ are distributed as [TeX:] $$ \mathcal{C} \mathcal{N}(0,1) $$

III. ENERGY EFFICIENCY CALCU

In this section, first the coverage probability of the network is calculated and then used for deriving the EE under two above scenarios. There exist different user association rules like the nearest BS, minimum path or the strongest average power and also maximum SINR [2], [18], [19] and in this paper, we use the maximum average received power user association rule in which each user is associated with the BS that provides it the strongest average received power. However, it should be noted that in the mmWave networks, because of the blockage effect and different path loss exponents for LOS and NLOS conditions, the strongest BS is not necessarily the nearest BS. To address this issue, in our analyses, we first map each NLOS BS located at distance r from the origin to an equivalent LOS BS with a larger distance [TeX:] $$ R_{e q}(r)=\left(C_{L} / C_{N}\right)^{1 / \alpha_{L}} r^{\alpha_{N} / \alpha_{L}} $$and then use the distance criterion to associate the users to the BSs. In addition, by considering different probabilities for LOS and NLOS links as in (1), the homogeneous PPP, [TeX:] $$\Phi_{m} $$ can be divided into two independent non-homogeneous PPPs, [TeX:] $$ \Phi_{L} $$ and [TeX:] $$ \Phi_{N} $$ with densities [TeX:] $$ \lambda_{L}(r)=\lambda_{m} P_{L}(r) \text { and } \lambda_{N}(r)=\lambda_{m} P_{N}(r) $$,respectively. The distance between the typical user and its serving BS is a random variable whose probability density function (PDF) is obtained by the following lemma.

Lemma 1: Assuming the highest power user association rule, the PDF of the distance between the typical user and its serving BS is given by (6) at the top of the next page, where [TeX:] $$ R_{e q}^{-1}(r)=\mu r^{\kappa}, \mu=\left(C_{N} / C_{L}\right)^{1 / \alpha_{N}} $$ and [TeX:] $$ \kappa=\alpha_{L} / \alpha_{N} $$

Proof: The CCDF of the distance of the nearest BS to the typical user R can be calculated as

where B (0, r) shows a ball centering at origin with radius r,[TeX:] $$ \Phi_{m}(B(0, r)) $$ represents the number of [TeX:] $$ \operatorname{PPP} \Phi_{m} $$ in the ball B (0, r), and the last equality comes from the fact that [TeX:] $$ \Phi_{L} $$ and [TeX:] $$ \Phi_{N} $$ are independent. Hence [TeX:] $$ \operatorname{Pr}\left\{\Phi_{L}(B(0, R))=0\right\} $$can be calculated as

where (a) is due to the null probability [20] and (b) comes from the definition of [TeX:] $$ \lambda_{L} $$ and [TeX:] $$ P_{L}(r) $$. Following a similar approach, we can calculate [TeX:] $$ \operatorname{Pr}\left\{\Phi_{N}\left(B\left(0, R_{e q}^{-1}(r)\right)\right)=0\right\} $$. Finally, by inserting into (7) and considering the fact that [TeX:] $$ f_{R}(r)=-\frac{d}{d r} \operatorname{Pr}\{R>r\} $$, the proof is completed.

A. Homogeneous Cellular Network

From (3), the received SINR at the typical user is obtained as

It is assumed that the main beam of the typical user and its serving MBS’s antennas are aligned, and therefore [TeX:] $$ D_{0}=M_{t} M_{r} $$. Then, the coverage probability is calculated in the following the-theorem

Theorem 1: The coverage probability of the typical user associated with the MBS that provides the highest received power is obtained as

where s is defined as [TeX:] $$ s=\gamma \rho^{\alpha_{L}} / P_{m} C_{L} D_{0} G_{0} $$ and [TeX:] $$ C_{k, \ell}=(-1)^{\ell} \frac{\left(m s \sigma^{2}\right)^{k-\ell}}{k !} \left( \begin{array}{l}{k} \\ {\ell}\end{array}\right), \gamma $$ is the SINR threshold for the typical user, and [TeX:] $$ \mathcal{L}_{I_{\Phi_{m}}}\left(z, \theta_{\mathrm{tilt}}\right) $$ represents the Laplace transform of [TeX:] $$ I_{\Phi_{m}}\left(\theta_{\text { tilt }}\right)=\sum_{j \neq 0, X_{j} \in \Phi_{m}} P_{m} L_{m}\left(r_{i, 0}\right) D_{j} G_{j}\left|h_{j, 0}\right|^{2} $$ as

Here we define [TeX:] $$ C_{i}=2 \pi \lambda_{m} p_{i} $$ and

Proof: [TeX:] $$ \mathcal{P}^{c} $$ can be obtained as

where E {.} denotes the expectation operator and (a) follows from [TeX:] $$ L_{m}\left(r_{0,0}\right)=C_{L} r_{0,0}^{-\alpha_{L}} $$ for the maximum received power association method, and (b) comes from the fact that [TeX:] $$ \left|h_{0,0}\right|^{2} \sim \Gamma\left(m, \frac{1}{m}\right) $$

Also,

Since[TeX:] $$ \Phi_{L} $$ and [TeX:] $$ \Phi_{N} $$ are independent,[TeX:] $$ \mathcal{L}_{I_{\Phi_{m}}}\left(s, \theta_{\mathrm{tilt}}\right) $$ can be written as

Hence we calculate [TeX:] $$ \mathcal{L}_{I_{\Phi_{L}}} $$(s) as

where (a) and (b) are derived from the fact [TeX:] $$ \left|h_{j, 0}\right|^{2} \sim \Gamma\left(m, \frac{1}{m}\right) $$ and the definition of the total antenna gain in horizontal domain, and also from the probability generating functional (PGFL) of the PPP [17]. Then [TeX:] $$ \mathcal{L}_{I_{\Phi} N}(s) $$ is (s) is computed by a similar method. Substituting [TeX:] $$ \mathcal{L}_{I_{\Phi} N}(s) $$ and [TeX:] $$ \mathcal{L}_{I_{\Phi} N}(s) $$ into (11) with [TeX:] $$ s=\gamma \rho^{\alpha_{L}} / P_{m} C_{L} D_{0} G_{0} $$ the proof is completed.

In the following, by using the coverage probability in (9), the EE of the network is calculated. The EE is defined as [21],[22]

where P_cm indicate the power consumption related to the signal processing and cooling, and [TeX:] $$ \eta_{m} $$ is the power amplifier effiency of each BS. By substituting (9) and (10) in (12), we have

B. Two Tier Heterogeneous

In this scenario, it is assumed that location of the MBSs and FBSs are modeled by two independent [TeX:] $$ \operatorname{PPP}, \Phi_{m} $$ and [TeX:] $$ \Phi_{f} $$ with densities [TeX:] $$ \lambda_{m} $$ and [TeX:] $$ \lambda f $$, respectively. According to (4) and (5), the SINR in the typical macro and femto users are given us

where

It is assumed that the main beam of the typical femto user and its serving FBS’s antennas are aligned i.e., [TeX:] $$ D_{0}^{f}=M_{t}^{f} M_{r}^{f} $$.

Because of sleep regions, the FBSs are modeled by a Poisson hole process. According to [20], [TeX:] $$ \Phi_{f}^{\prime} $$,has the density

The following theorem provides the coverage probability of the macro users.

Theorem 2: In the HetNet scenario, by considering the sleep region around each MBS, the coverage probability of typical macro user is expressed as

where [TeX:] $$ \mathcal{L}_{I_{\Phi_{m, f}}}\left(z, \theta_{\text { tilt }}\right)=\left(\mathcal{L}_{I_{\Phi m}}\left(z, \theta_{\text { tilt }}\right) \mathcal{L}_{I_{\Phi_{f}}^{m}}\left(z, \theta_{\text { tilt }}\right)\right) $$ and [TeX:] $$ s=\gamma_{m} \rho^{\alpha_{L}} / P_{m} C_{L} D_{0} G_{0}, \gamma_{m} $$ represents the SINR threshold for the typical macro user and [TeX:] $$ \mathcal{L}_{I_{\phi_{f}^{\prime}}^{m}}\left(z, \theta_{\text { tilt }}\right) $$ indicates the Laplace transform of the interference from the FBSs to the macro user as

where [TeX:] $$ C_{i}^{f^{\prime}}=2 \pi \lambda_{f^{\prime}} p_{i}^{f m} $$

Proof: Adopting a similar approach to Theorem 1, we have

We can compute the probability inside the integral as

where we use the fact that [TeX:] $$ \left|h_{0,0}\right|^{2} $$ has Gamma distribution. Similarly, we have

where (a) is due to the fact [TeX:] $$\left|g_{j, 0}^{f}\right|^{2} \sim $$ ∼ exp (1) and (b) is derived from the PGFL of the [TeX:] $$ \operatorname{PPP} \Phi_{f}^{\prime} $$ [17].

Next, we derive the coverage probability of the typical femto user in the following theorem.

Theorem 3: In the HetNet scenario, the coverage probability of the typical femto user is expressed as

where [TeX:] $$ s_{f}=\left(\gamma_{f} /\left(P_{f} C_{L} D_{0}^{f}\right)\right) \cdot \rho^{\alpha_{L}}, \gamma_{f} $$ denotes the SINR threshold for the typical femto user, and [TeX:] $$ \mathcal{L}_{I_{\Phi_{m}}^{f}}\left(s_{f}, \theta_{\text { tilt }}\right) $$ and [TeX:] $$ \mathcal{L}_{I_{\Phi_{f}}^{f}}\left(s_{f}, \theta_{\mathrm{tilt}}\right) $$ are obtained as

where [TeX:] $$ C_{i}^{m f}=2 \pi \lambda_{m} p_{i}^{m f} $$ and [TeX:] $$ g_{R}(\rho)=2 \rho / R_{f}^{2} $$.

Proof: According to the hole point process, the probability that a FBS outside of a sleep region is active equal [TeX:] $$ \exp \left(-\pi \lambda_{m} R_{c}^{2}\right) $$. Thus we have

The rest of calculation is similar to Theorem 2 and thus is not repeated here.

In the following lemma, we derive a lower bound on the terms of the coverage probability of the typical femto user.

Lemma 2: In the HetNet scenario, [TeX:] $$ \mathcal{L}_{I_{\Phi m}^{f}} $$ and [TeX:] $$ \mathcal{L}_{I_{\Phi_{m}}^{f}} $$ in (17) and (18) can be respectively lower bounded as

Proof: To find a lower bound for (17), we replace G (x, θ) by its maximum value G_max which results in (20). Furthermore, to obtain a lower bound for (18), we use the fact that for any [TeX:] $$ f(x) \geq 0 \text { and } \rho \geq 0, \int_{\rho}^{\infty} f(x) d x \leq \int_{0}^{\infty} f(x) d x $$which results in (21). Also, we have [TeX:] $$ E\left\{D^{\frac{2}{\alpha_{N}}}\right\}=\sum_{i=1}^{4} p_{i} d_{i}^{\frac{2}{\alpha_{N}}} $$.

Corollary 1: A lower bound on the coverage probability of the typical femto user in (16) in an interference limited regime [TeX:] $$ \left(\text { i.e. } \sigma^{2} \approx 0\right) $$ is given by

where C₀ is obtained as

γ (., .) denotes the lower incomplete gamma function, and C₁ and C₂ are defined as

respectively.

Proof: By substituting (20) and (21) into (16) and considering an interference limited regime [TeX:] $$ \left(\sigma^{2} \approx 0\right) $$, the proof is complete.

In this scenario, the EE of the network is written as

where P_f and P_cfrespectively represent the transmitted power and the constant power consumption in the FBSs and [TeX:] $$ \eta_{f} $$is a constant related to the power amplifiers efficiency of the FBSs.

IV. ENERGY EFFICIENCY MAXIMIZATION

As we see in (12) and (23), the EE is a function of [TeX:] $$ \theta_{\text { tilt }} $$and therefore, it can be maximized by optimizing the tilt angle. The optimum tilt angle of the BSs is obtained through the following optimization problem

Unfortunately, the objective function of this problem is very complex and in the following, we propose low complexity algorithms for finding the optimal tilt angle in both scenarios.

A. Homogeneous Cellular network

In fact, to calculate the EE in this scenario, we first need to obtain [TeX:] $$ E_{I_{\Phi} m}\left[e^{-m s I_{\Phi m}} \sum_{k=0}^{m-1} \frac{\left(m s\left(I_{\Phi_{m}}+\sigma^{2}\right)\right)^{k}}{k !}\right] $$by (10) for each value of ρ. Then, the integral at the numerator (13) must be calculated. Hence, the optimum tilt angle can not be found by an efficient method and we have to perform an exhaustive search over all possible values of [TeX:] $$ \theta_{\text { tilt }} $$which in this case is very hard to implement.

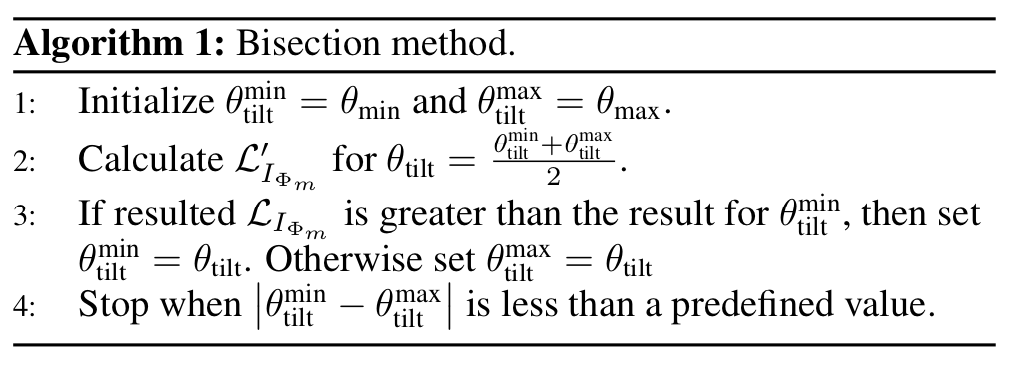

To address this problem, in the following, we propose a lowcomplexity method for finding the optimum tilt angle. As it is seen in (9), for calculating the coverage probability, we need to compute [TeX:] $$ E_{\rho}\left\{e^{-m s \sigma^{2}} \sum_{k=0}^{m-1} \sum_{\ell=0}^{k} C_{k, \ell}\left[\frac{d^{\ell}}{d z^{\ell}} \mathcal{L}_{I}\left(z, \theta_{\text { tilt }}\right)\right]_{z=m s}\right\} $$.

By considering the PDF of R (i.e., the distance between the typical user and its serving BS) in (6), we define two distance bounds of [TeX:] $$ \rho_{0} $$ and [TeX:] $$ \rho_{1} $$ such that [TeX:] $$ \operatorname{Pr}\left\{\rho_{0} \leq R \leq \rho_{1}\right\} \geq 1-\epsilon $$ Using these bounds, the optimal tilt angle will be restricted to the following range

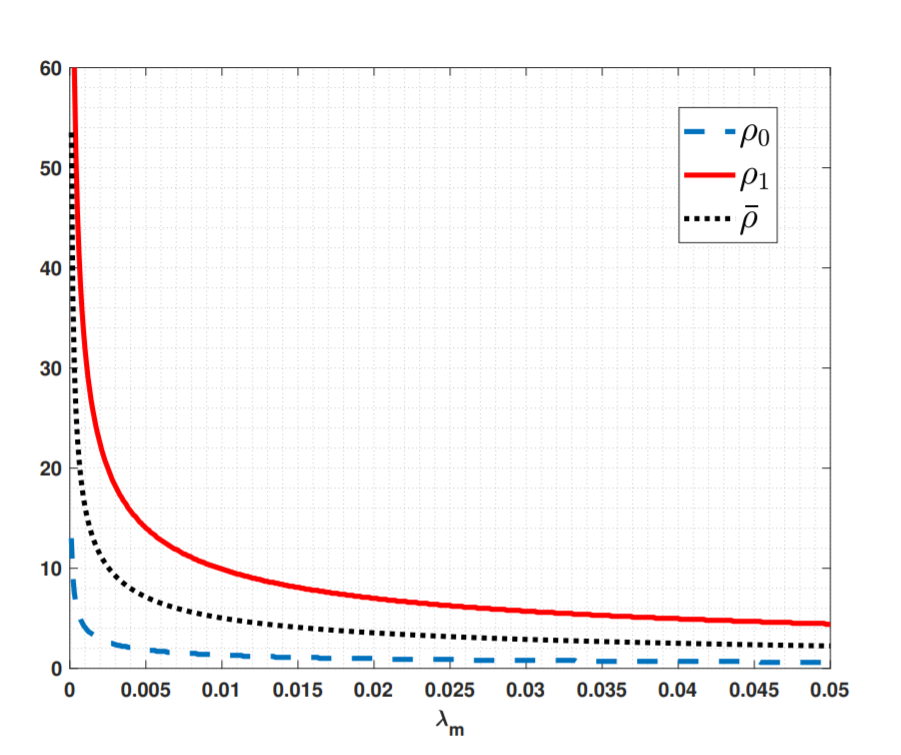

where [TeX:] $$ \theta_{0}=\theta_{3 \mathrm{dB}} \sqrt{\mathrm{SLL}_{\mathrm{dB}} / 12} $$The values of [TeX:] $$ \rho_{0} $$ and [TeX:] $$ \rho_{1} $$can be obtained numerically using (6) for a given [TeX:] $$ \epsilon $$. In Fig. 2, we depict the values of these two bounds for [TeX:] $$ \epsilon=0.1 $$ in different densities of the BSs, [TeX:] $$ \lambda_{m} $$. In addition, the average distance between the typical user and its serving BS, i.e., [TeX:] $$ \overline{\rho}=E\{\rho\} $$is also shown in this figure. It is interesting to note that in large values of [TeX:] $$ \lambda_{m} $$m (which is related to dense mmWave networks), both of [TeX:] $$ \rho_{0} $$ and [TeX:] $$ \rho_{1} $$converge to[TeX:] $$ \overline{\rho} $$. We exploit this property to simplify the calculations.

Using the above property, we can apply the Taylor expansion at the point of [TeX:] $$ \overline{\rho} $$ to obtain the following approximation for (9) as

where [TeX:] $$ \overline{s}=\gamma \overline{\rho}^{\alpha_{L}} / C_{L} P_{o} D_{0} G_{0} $$and

In addition to the above approximation, another way to reduce the complexity of the optimization problem in (24), is narrowing the search interval of [TeX:] $$ \theta_{\text { tilt }} $$. From (25) and considering that in the dense mmWave networks, both [TeX:] $$ \rho_{0} $$ and [TeX:] $$ \rho_{1} $$ converge to[TeX:] $$ \overline{\rho} $$ , we can obtain the bounds of [TeX:] $$ \theta_{\text { tilt }} $$ as [TeX:] $$ \theta_{\min } \leq \theta_{\text { tilt }} \leq \theta_{\max } $$where

Therefore, an equivalent problem for (24) can be expressed as maximize

This problem has a significantly reduced computational complexity compared to the original problem in (24). Since, we do not need to compute (10) for each value of [TeX:] $$ \rho $$. In addition, the search interval is also limited. It can be shown that (29) is a convex problem and hence, it can be solved efficiently. In Algorithm 1, we present a bisection method to solve it. In Section V, we will show that the performance of the proposed lowcomplexity approach is very close to the optimal solution found by exhaustive search.

B. Two Tier Heterogeneous Networ

As mentioned in Section III, in the HetNet scenario, to improve the coverage of the macro users, a sleep region with radius R_c is introduced around each MBS. On the other hand, when we turn off some FBSs, the coverage of the typical femto user decreases. As a result, we have a tradeoff between the coverage probabilities of the macro and femto users. Therefore, in our optimization problem, the radius of the sleep region should be considered as an optimization parameter in addition to the tilt angle, and the EE maximization problem becomes

where [TeX:] $$ \epsilon_{m} $$ and [TeX:] $$ \epsilon_{f} $$ are the minimum coverage requirements in the typical macro and femto users, respectively, and [TeX:] $$ R_{c}^{\max } $$de-notes the maximum radius of the sleep region which is equal to [TeX:] $$ R_{c}^{\max }=1 / \sqrt{\pi \lambda_{m}} $$. Again, this optimization problem is too complex to solve numerically.

To reduce the complexity of the above optimization problem, we follow a similar approach as in the homogeneous scenario. To this end, we consider the following optimization problem

where

Here we define

where [TeX:] $$ \overline{g}=E\left\{g_{R}(\rho)\right\} $$ and [TeX:] $$ \overline{s}_{f}=\frac{\gamma_{f}}{P_{f} C_{L} D_{0}} \overline{g}^{\alpha_{L}} $$. By using this approach, the calculations are significantly simplified compared to the optimum exhaustive search. Here, instead of calculating (14) and (16) in which we need to compute (10), (15), (17) and (18) for all values of [TeX:] $$ \rho $$,it is sufficient to evaluate (27) and (32) only for [TeX:] $$ \rho=\overline{\rho} $$ and obtain (33) and (34) only for [TeX:] $$ \rho=\overline{g} $$. In the next section, we will show that by applying this low-complexity approach, only a minor degradation in the performance is observed.

V. NUMERICAL RESULT

In this section, we numerically evaluate the performance of the proposed 3DBF with tilt angle optimization scheme for the mmWave networks. Through the simulations, we demonstrate that how the EE of the network is improved when the tilt angle of the BSs’ antenna is optimized. In addition, the performance of the proposed low-complexity method is compared with the optimal solution obtained by exhaustive search. Table 1 summarizes the simulation parameters used in this section[3], [22].

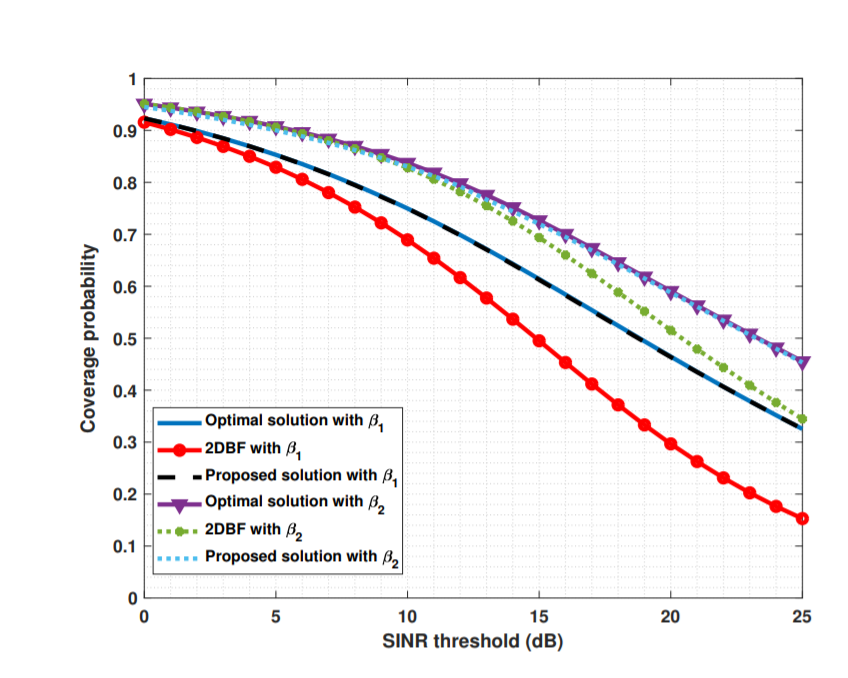

We first examine the homogeneous scenario. The coverage probability of the network under this scenario is depicted in

Fig. 3 as a function of the SINR threshold. The density of the MBS is [TeX:] $$ \lambda_{m}=4.973 \times 10^{-5} $$ and the curves are obtained under two different values of the blockage effect intensitity [TeX:] $$ \beta $$ as in table 1 and m = 5. It is observed that by increasing the 3DBF outperforms in comparison with the network in which the tilt angle is not optimized (marked as 2DBF in the figure) and also the proposed low complexity method have performance close the optimal solution resulted from the exhaustive search.

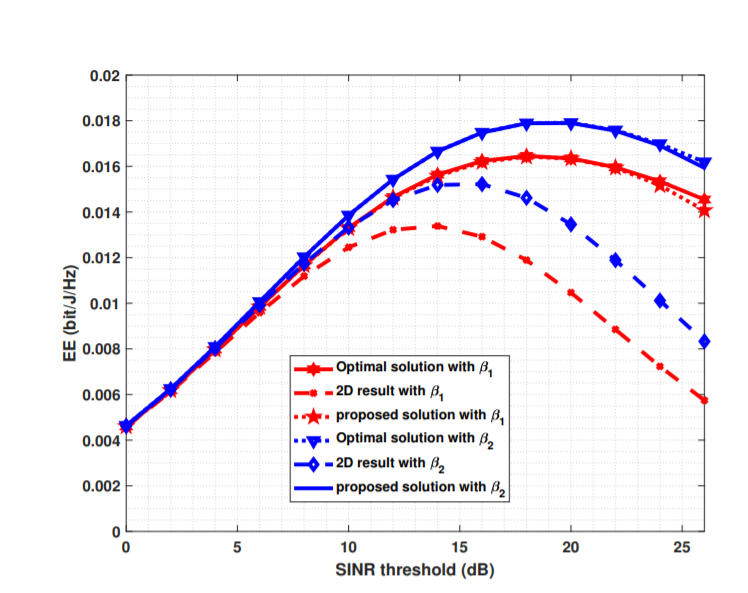

Fig. 4 illustrates the EE of the network in terms of the SINR threshold for [TeX:] $$ \lambda_{m}=8 \times 10^{-4} $$ and two values of [TeX:] $$ \beta $$ as in Table 1 under this scenario with m = 1. As we see in this figure, the EE of the network that adopts 3DBF is always improved in comparison with the 2DBF. This improvement is more than 100% in high SINR thresholds. In addition, in this figure, the EE performance of the proposed low-complexity method is compared with the optimum method based on the exhaustive search. As we see in the figure, the performance of the proposed lowcomplexity approach is the same as the optimal solution in almost all the SINR threshold and for both values of [TeX:] $$ \beta $$.

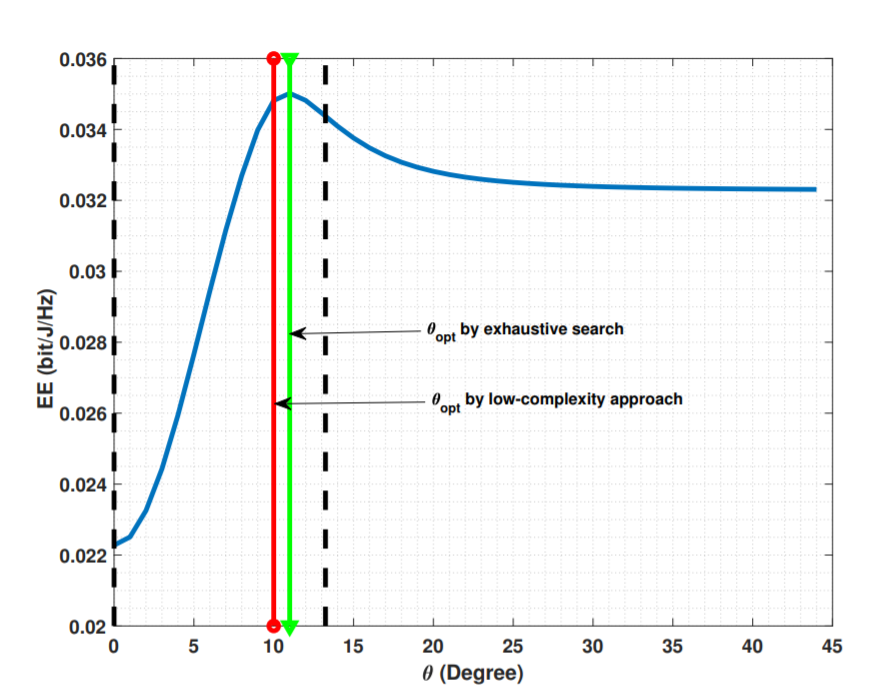

Fig. 5 presents the network EE with respect to the tilt angle for [TeX:] $$ \lambda_{m}=5.093 \times 10^{-6} $$ and m = 5. In this figure, the optimum tilt angles obtained by exhaustive search and the proposed lowcomplexity method are shown. Also, the dashed lines represent the tilt angle bounds obtained in (28). We see that both tilt angles are almost the same.

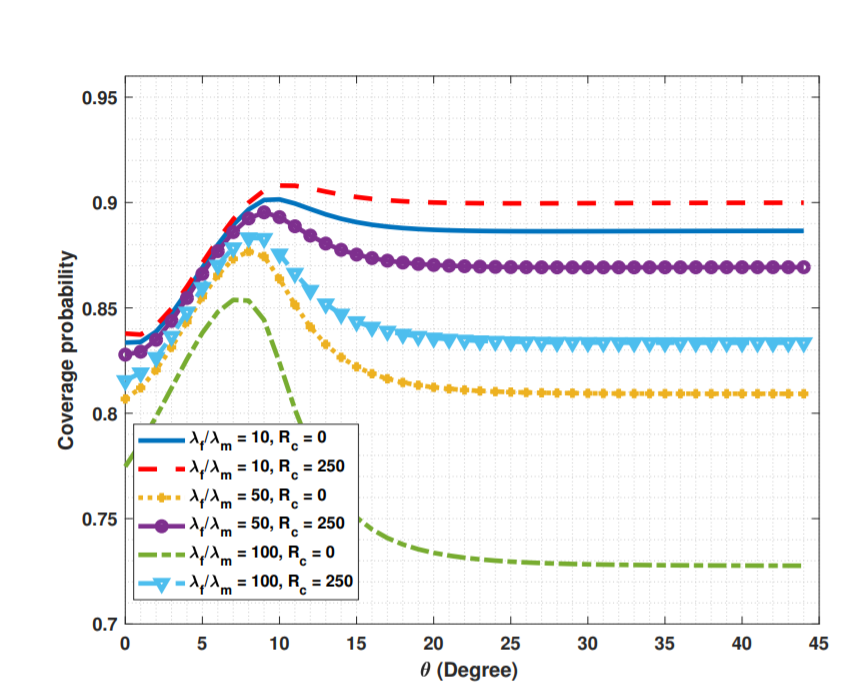

In Fig. 6, performance of the HetNet scenario is evaluated. This figure exhibits the effect of the FBSs density [TeX:] $$ \lambda_{f} $$ and the radius of the sleep region R_c on the optimum tilt angle that maximizes the coverage of the typical macro user. In this figure we see that by increasing the density of the FBSs, the optimum tilt angle slightly decreases. Also by increasing R_c or reducing the density of the FBSs, the coverage probability of the macro users increases, since interference from the FBSs is reduced.

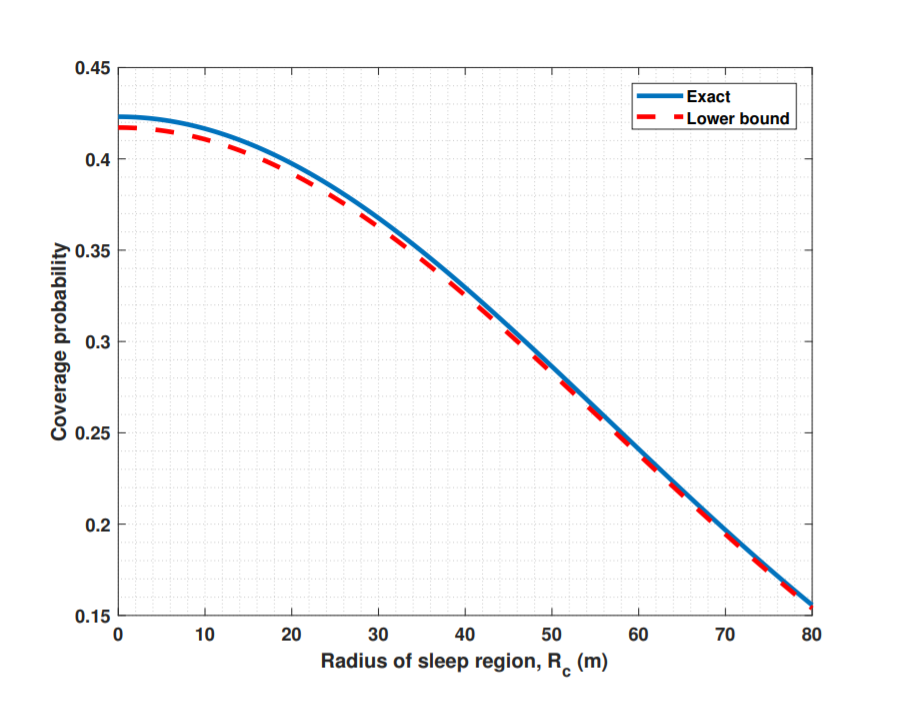

Fig. 7 illustrates the coverage probability of the typical femto user in terms of R_c for case of [TeX:] $$ \sigma^{2}=5 \times 10^{-4} $$, which corresponds to [TeX:] $$ \mathrm{SNR}_{f}=P_{f} / \sigma^{2}=23 \mathrm{dB} $$. In this figure, we see that the lower bound obtained in (30) is very tight. It is observed that although the lower bound is obtained under assumption of an interference limited scenario, it is still quite tight in other scenarios.

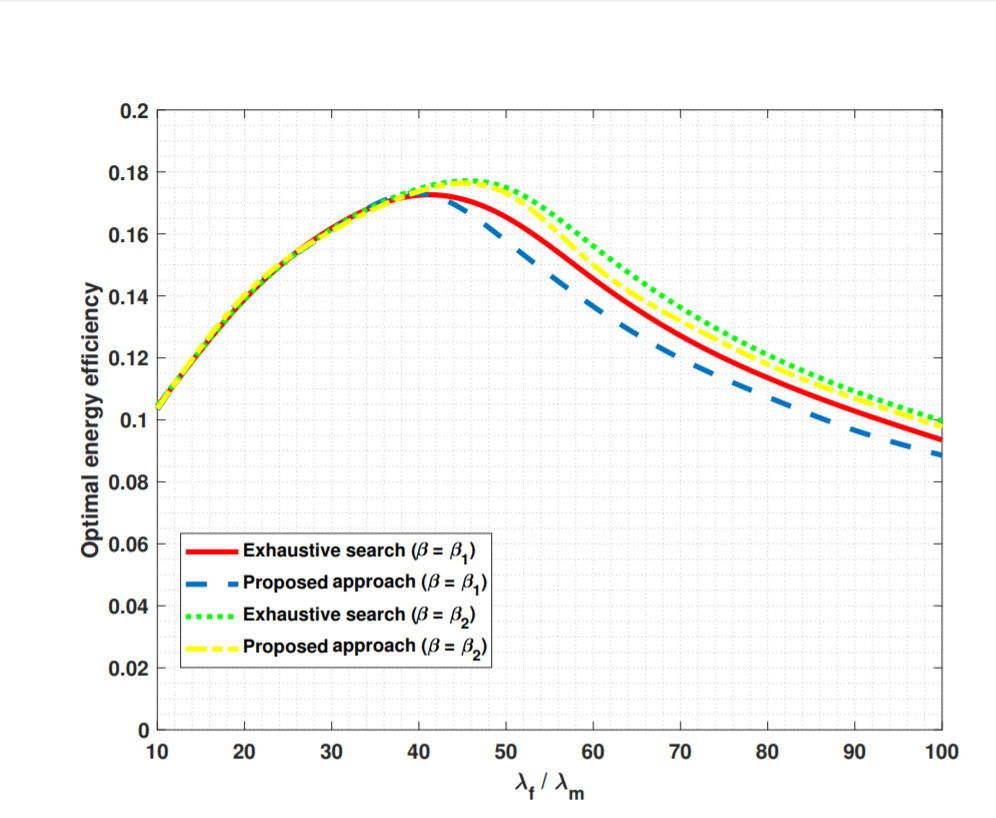

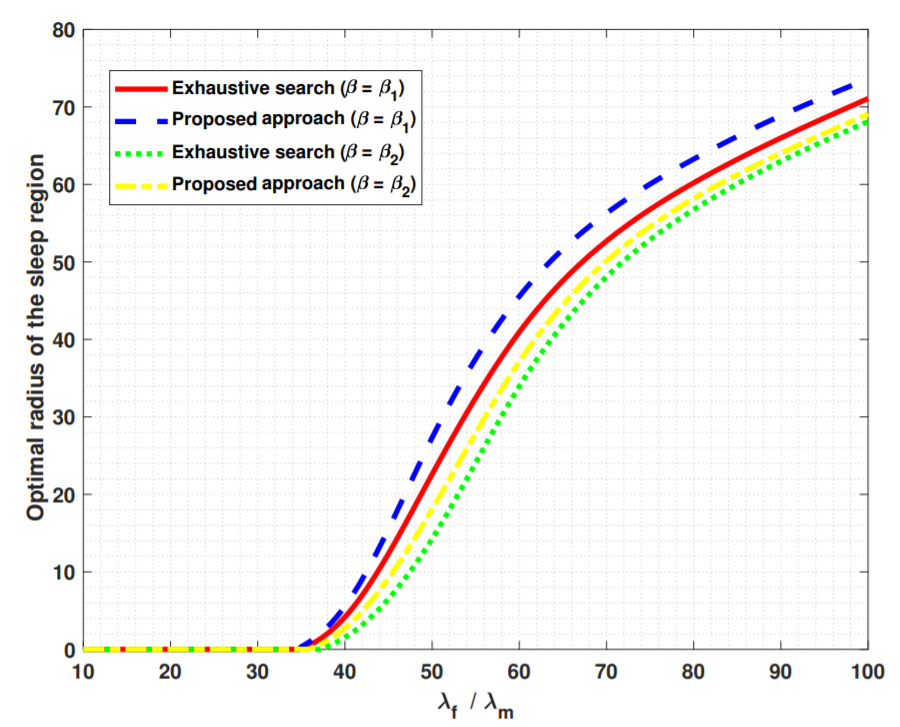

Figs. 8 and 9 plot the optimal EE, the optimal radius of the sleep region and the optimal tilt angle, respectively, with [TeX:] $$ \epsilon_{m}=0.2, \epsilon=0.7, \gamma_{m}=\gamma_{f}=10 \mathrm{dB} $$. We can check that the proposed low complexity approach has only a minor degradation in the performance with respect to the exhaustive search.

VI. CONCLUSION

In this paper, we have studied the EE maximization problem in the downlink of a 3D beamforming mmWave network. We have optimized the tilt angle of the BSs to maximize the EE in a homogeneous network and a two tier HetNet mmWave cellular network. In both scenarios, we have optimized the tilt angle of the MBS’s antenna to maximize the EE. In addition, in the second scenario, the optimization of the radius of the sleep region has also been considered. In addition, to reduce the complexity of the optimization problems, an efficient method based on bisection algorithm has been proposed to compute the optimal tiltangle. The proposed algorithms result in almost the same EE performance as the optimal method based on exhaustive search but with much reduced complexity.
