## Shengmin Cui and Inwhee Joe## |

Index | Information | Units |
---|---|---|

1 | Number of end nodes | - |

2 | Number of gateways | - |

3 | Spreading factor (SF) | - |

4 | Bandwidth (BW) | kHz |

5 | Coding rate (CR) | - |

6 | Data size | byte |

7 | Period | ms |

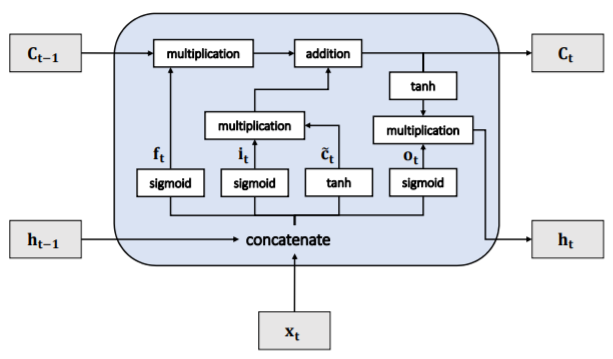

where [TeX:] $$\sigma()$$ is the sigmoid function and [TeX:] $$W_{f}, W_{i}, W_{c}, W_{o}$$ are weight matrices and [TeX:] $$b_{f}, b_{i}, b_{c}, b_{o}$$ are bias vectors in the cell. Furthermore, [TeX:] $$x_{t}$$ is the input vector, [TeX:] $$c_{t}$$ is the cell state vector, [TeX:] $$\tilde{c}_{t}$$ is the intermediate state vector, [TeX:] $$h_{t}$$ is the hidden state vector, and [TeX:] $$f_{t}, i_{t}, O_{t}$$ are forget, input, output gates. LSTM cleverly provides gate control by using sigmoid function. This method retains information that requires long-term memory and discards unimportant information. This architecture also can be extended to multi-layer by treating the hidden state of last layer as input of the next layer.

In this section, we introduce our novel models for collision prediction. As mentioned in section II, different parameter settings will affect the number of collisions in the LoRa system, therefore, SF, BW, and CR are included in the input information. In addition, the system information such as the number of end nodes, the number of gateways, data size, and period has an impact on the amount of network transmission, then these are also added to the input information. Finally, these numerical values at time step t are formed an input vector [TeX:] $$x_{t}$$ as shown in Table 1.

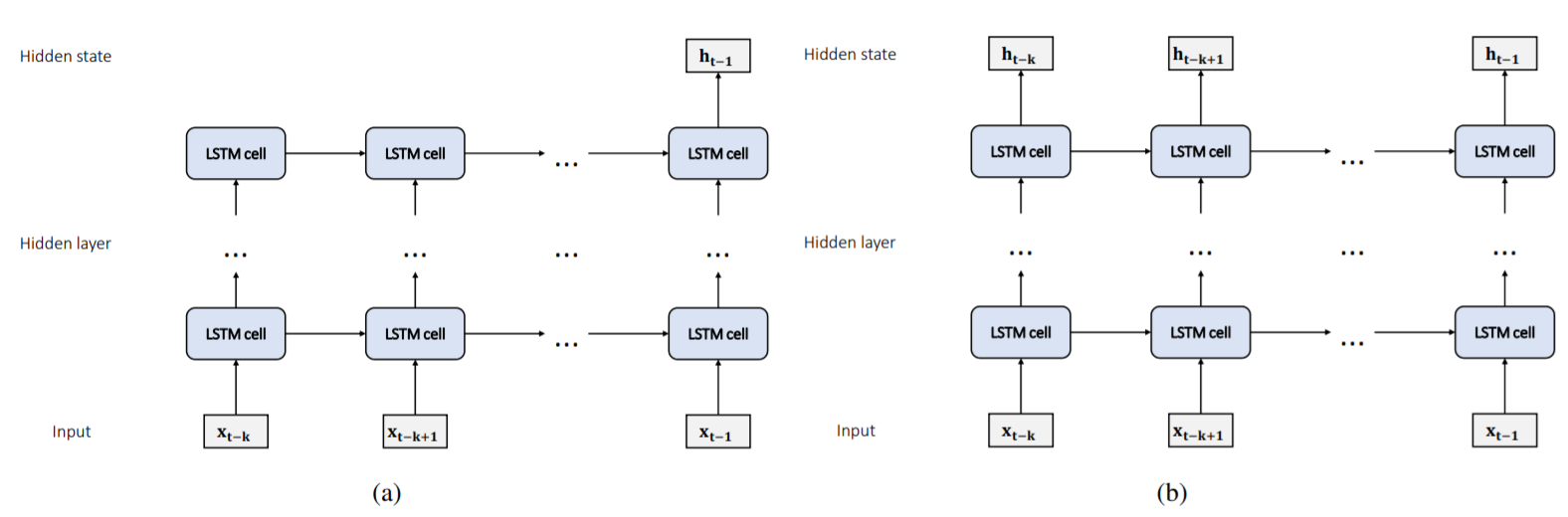

LSTM models could be constructed in a variety of ways depending on the input and output, such as one-to-one, one-tomany, many-to-one, and many-to-many. In this work, our purpose is to make use of information from several past time steps rather than information from one time step to make prediction, thus we consider many-to-one and many-to-many structures to build our prediction models as shown in Fig. 4. First, let consider many-to-one structure that is the prediction [TeX:] $$y_{t}$$ of the model is linear combination of the hidden state [TeX:] $$h_{t-1}$$ with weight vector [TeX:] $$w_{t}$$ and bias [TeX:] $$b_{t}$$. Then, we make the final prediction as

where k is the length of time steps received at one time. In this architecture, the final prediction only depends on [TeX:] $$h_{t-1}$$. However, using more implicit information from the past may improve the performance of the forecast. For this purpose, we make prediction depend on all hidden states of LSTM. Hence, the second architecture is defined as

This architecture makes prediction value with more past information than architecture 1. These models are trained by backpropagation through time (BPTT) [36] and stored the whole structure and trained weights with best validation performance. Then the LSTM structure can be used as backbones to extract hidden states for our models.

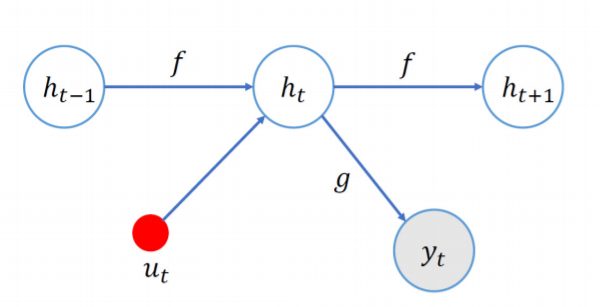

The main idea of LSTM-EKF model is sending the features extracted from pre-trained LSTM to the SSM models and solve the SSM by using EKF algorithms as shown in Fig 5. The EKF is an extension of Kalman filter (KF) which is a well-known linear system. It linearizes the non-linear systems by using Taylor’s theorem [37]. There are certain decoupled EKF-based method to train LSTM [38], [39] in an online manner. However, the performance of online training methods are far from the level of offline training. Therefore, in our case, we combine the statistical validity of offline methods and the adaptable characteristics of online methods. When making predictions on the test set, the EKF algorithm estimates weights vector and bias which directly maps the hidden state to the predicted output, while keeping the remaining weights within the LSTM unchanged. This method can make the offline trained model adapt to the test data to further improve the accuracy of the offline model. The EKF assumes that the posterior pdf of the states given the observation is Gaussian [40]. Therefore, our hybrid system based on LSTM architecture 1 in a perspective of SSM can be defined as

where [TeX:] $$\epsilon_{t}^{(1)}, \quad \nu_{t}^{(1)}, \quad \text { and } \quad \eta_{t}^{(1)}$$ are Gaussian noises and [TeX:] $$\left[\epsilon_{t}^{(1) T}, \nu_{t}^{(1) T}\right]^{T} \text { and } \eta_{t}^{(1)}$$ are with variances [TeX:] $$Q_{t}$$ and [TeX:] $$R_{t}$$. Similarly our hybrid prediction model based on architecture 2 is defined as

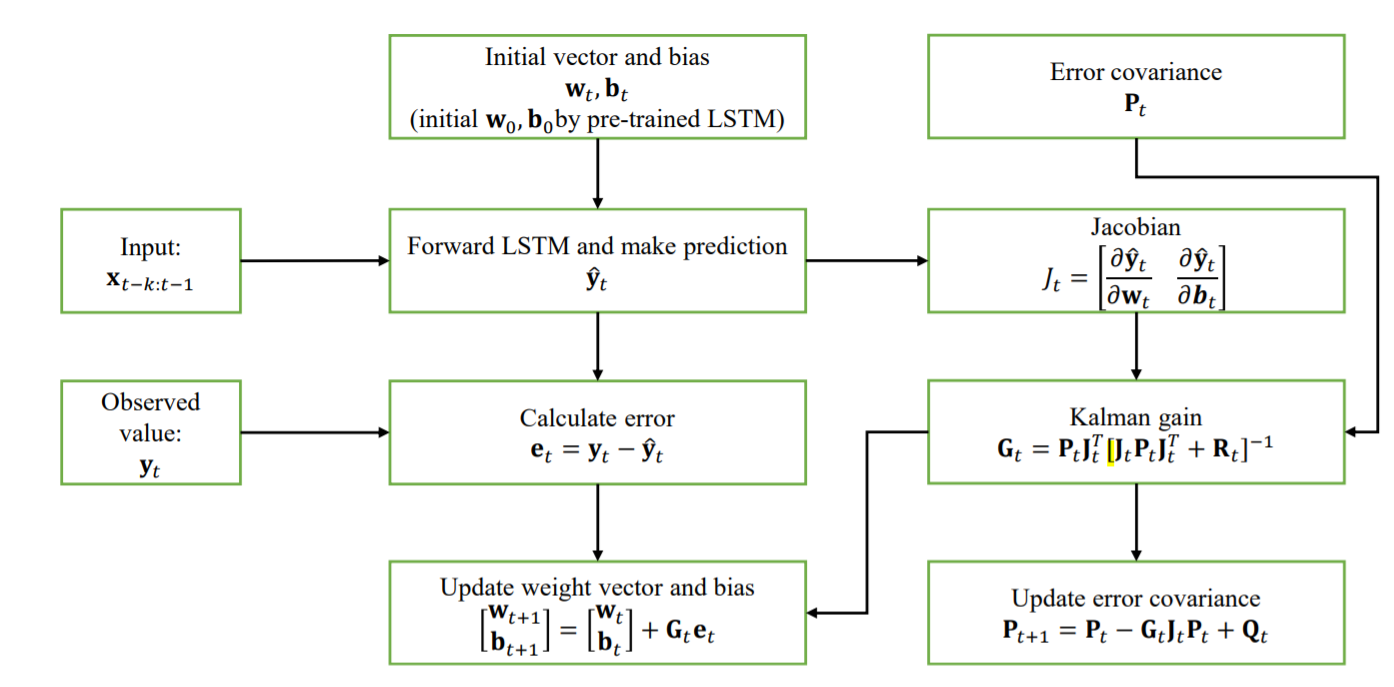

First, we initialize the hybrid model with pre-trained LSTM and then receive the input and forward through the model to calculate the output [TeX:] $$\hat{y}_{t}$$. This step is defined as prediction stage and the prediction result is made based on the previous information and system weighting factor. Then, we can update the [TeX:] $$w_{t} \ and \ b_{t}$$ based on the observation. This step is defined as correction stage that calculate the posterior weighting factor conditioned on current observation. Thus, the EKF update [TeX:] $$w_{t} \ and \ b_{t}$$ as follows:

where [TeX:] $$G_{t}$$ denotes the Kalman gain and [TeX:] $$P_{t}$$ denotes the error covariance matrix. The matrix [TeX:] $$Q_{t}$$ is the covariance of process noise and the [TeX:] $$R_{t}$$ is the measurement noise. Finally, the Jacobian [TeX:] $$J_{t}$$ containing the partial derivatives is calculated as

For the Jacobian computation, the two architectures calculate based on (9) and (11). The computational complexity of the EKF updating the weight vector and bias based on the size m and the length k of the time steps of input. Thus, the computational complexity of updating weight vector and bias of the architecture 1 using EKF is [TeX:] $$O\left(m^{3}\right)$$ due to the matrix computation while the architecture 2 results in [TeX:] $$O\left(k^{3} m^{3}\right)$$.

In this section, we evaluate performance of our proposed prediction models for the data sets generated by LoRaSim. Our goal is to predict the future collisions in a LoRa system by examining the past information. We first evaluate the performances of LSTM-EKF model and compare it to the offline trained LSTM model. Then we compare the performance of two different structures of LSTM-EKF. We then examine the parameters such as size of hidden states, length of time steps, and number of layers. To illustrate the EKF updating method is better than finetuning, we compare the performance of EKF and stochastic gradient descent (SGD) in online training method. Finally, we compare our model to conventional deep learning methods.

Mean squared error (MSE) and coefficient of determination denoted [TeX:] $$R^{2}$$ are used to assess the quality of these prediction models:

where [TeX:] $$y_{t} \text { and } \hat{y}_{t}$$ are ground truth value and predict value at time step t respectively. Moreover, [TeX:] $$\bar{y}$$ denotes mean value of ground truth. MSE measures the average squared error loss between the predicted values and ground truth. It is always positive or 0 and value smaller means better. On the other hand, [TeX:] $$R^{2}$$ is a statistical measure of how well the regression model fit to the data. It is used for evaluating performance of proposed models. [TeX:] $$R^{2}$$ is normally ranges from 0 to 1. [TeX:] $$R^{2}=0$$ indicates that the regression model cannot explain the data while [TeX:] $$R^{2}=1$$ means that the regression model explains data completely.

In this work, we use LoRaSim [31], to simulate LoRa link behaviors and generate data sets. LoRaSim is a discrete-event simulator based on SimPy [41], for simulating collisions in LoRa networks and to analyze scalability. It simulates LoRa nodes and base stations in a 2-dimensional space. Parameters such as numbers of nodes, numbers of gateways, BW, SF, CR, data size, period and total simulation time can be set up and the number of collisions can be output as a result. Gateway in LoRaSim simulates the Semtech SX1301 chip which can receive 8 contemporaneous signals since these signals are orthogonal.

LoRaSim mentioned above is used to generate data set and split to training data and test data. We set parameters manually and collect generated number of collisions. The time step in our work is set as 20 minutes.

We split our data set into a training set and test set by a ratio of 70 and 30 and scaled the data to [0, 1] since doing so could speed up the convergence of models. The performances compared in the experiments in this paper, such as MSE and R2, are calculated using scaled data. We choose Keras library with tensorflow as backend written in Python. Models are trained on single Nvidia GTX 1080 Ti GPU.

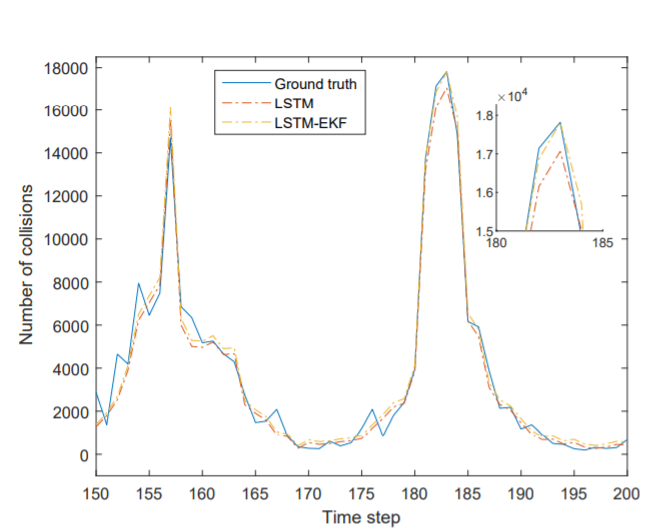

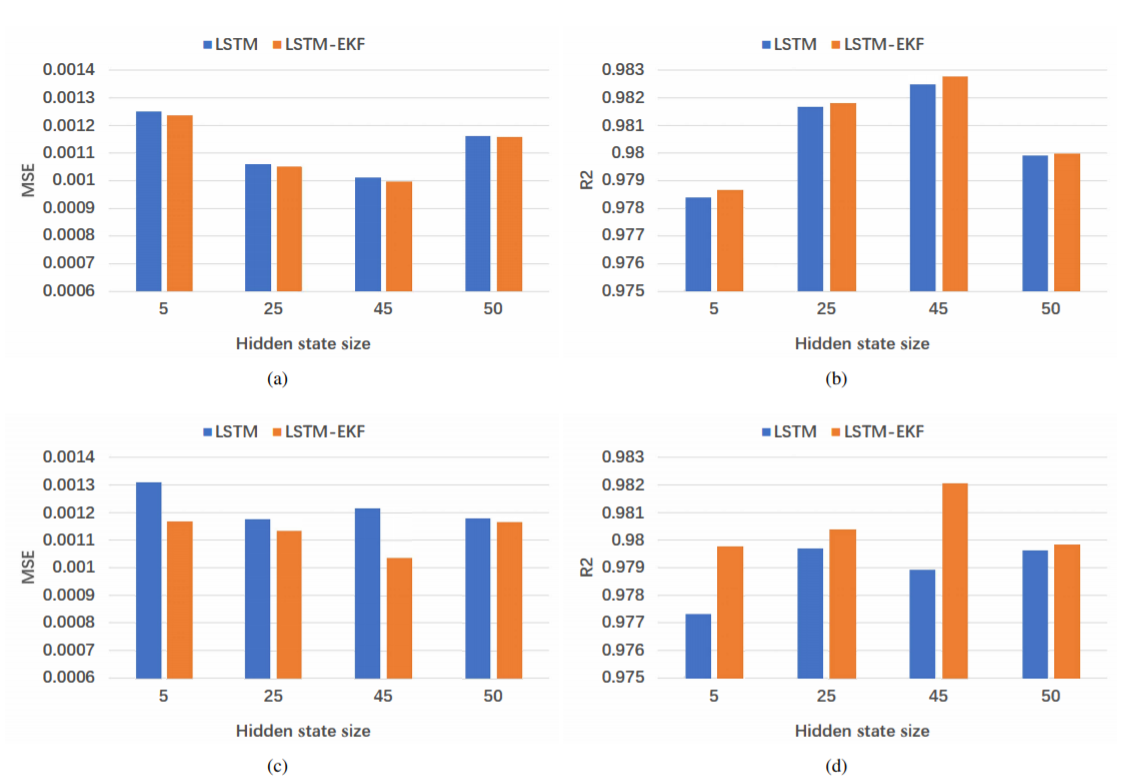

We first consider whether the LSTM-EKF model can improve the performance of LSTM. For this purpose, we choose the same parameters settings and test on both architectures. For the LSTM, we set parameters length of time steps as k = 5, number of LSTM layers as n = 2, learning rate as [TeX:] $$\mu=0.01$$, and the hidden state size varying among [5, 25, 45, 50]. All LSTM models are trained by Adam and RMSprop and the MSE is used as loss function. The model with best validation performance is stored and test on test data. For the LSTM-EKF model, we initialize the model with pre-trained LSTM and we choose [TeX:] $$P_{0}=10^{-3} I$$, [TeX:] $$Q_{t}=10^{-4} I, \text { and } R_{t}=0.25$$. Fig. 6 shows the performance of LSTM and LSTM-EKF prediction on test data. The MSE and [TeX:] $$R^{2}$$ of architecture 1 with different hidden state size are presented in Figs. 6(a) and 6(b) and the results of architecture 2 are presented in Figs. 6(c) and 6(d). As shown in Fig. 6, whether choose architecture 1 or architecture 2, the prediction results of LSTM-EKF are always better than LSTM in the case of different hidden state sizes. In addition, it can be clearly seen from Fig. 6 the improvement of LSTM-EKF with architecture 2 is more significant than the improvement of LSTM-EKF with architecture 1. For architecture 1, LSTM-EKF reduced MSE by an average of 0.95 and [TeX:] $$R^{2}$$ increased by an average of 0.02 compared to LSTM. Take the architecture 1 model with hidden state size m = 45 as an example, the LSTM-EKF model improved the LSTM model with 1.50 reduction of MSE and 0.03 increase of [TeX:] $$R^{2}$$ on test data. However, for architecture 2, MSE decreased by an average of 7.57 and [TeX:] $$R^{2}$$ increased by an average of 0.17. Wherein the architecture 2 with hidden state size m = 45, MSE is reduced by 14.79 and [TeX:] $$R^{2}$$ increased by 0.32. We believe that the reason of the improvement effect of architecture 2 can be better than architecture 1 is that LSTMEKF with architecture 2 handles more hidden states and the size of weight matrix which mapping hidden states to final prediction needs to be updated during the reasoning process is much larger than the weight matrix of LSTM-EKF with architecture 1. The ground truth of collisions of test data and the prediction result generated by LSTM and LSTM-EKF with architecture 1, k = 5, n = 2, m = 45 are presented in Fig. 7. As can be seen in Fig. 7, the accuracy of LSTM-EKF is better than LSTM especially on the peak of the number of collisions. In summary, by adding an EKF on the top of LSTM, weights and bias for mapping features to the predict values are updated in an online manner that can improve the performance of LSTM and the improvement with architecture 2 is more obvious than that with architecture 1.

Next, the performance of LSTM-EKF with different architectures and different settings are compared. In this experiment, we set length of time steps as k = 5, number of layers among [1, 2, 3], and hidden state size among [5, 25, 45, 50]. Generally, more layers and larger hidden state size imply more parameters

Table 12

Parameters(layers n, hidden state size m) | Architecture 1 | Architecture 2 | ||
---|---|---|---|---|

[TeX:] $$\operatorname{MSE}\left(10^{-3}\right)$$ | [TeX:] $$R^{2}$$ | [TeX:] $$\operatorname{MSE}\left(10^{-3}\right)$$ | [TeX:] $$R^{2}$$ | |

n = 1, m = 5 | 1.3549 | 0.97653 | 1.2299 | 0.97869 |

n = 1, m = 25 | 1.1144 | 0.98018 | 1.1173 | 0.98064 |

n = 1, m = 45 | 1.2042 | 0.97914 | 0.9863 | 0.98291 |

n = 1, m = 50 | 1.2014 | 0.97918 | 1.0430 | 0.98193 |

n = 2, m = 5 | 1.2336 | 0.97863 | 1.1677 | 0.97977 |

n = 2, m = 25 | 1.0503 | 0.98180 | 1.1318 | 0.98039 |

n = 2, m = 45 | 0.9943 | 0.98277 | 1.0367 | 0.98204 |

n = 2, m = 50 | 1.1566 | 0.97996 | 1.1647 | 0.97982 |

n = 3, m = 5 | 1.1359 | 0.98032 | 1.1655 | 0.97981 |

n = 3, m = 25 | 1.2180 | 0.97890 | 1.2536 | 0.97828 |

n = 3, m = 45 | 1.3187 | 0.97715 | 1.1660 | 0.97980 |

n = 3, m = 50 | 1.2031 | 0.97916 | 1.3563 | 0.97650 |

that can learn data better. However, too many parameters will lead to overfitting problem. On the other hand, too few parameters can not learn data very well. Finally, the architecture 2 handling more hidden states means that it has more parameters than architecture 1 with the same settings.

Test results are tabulated in Table 2. First, we consider the effect of the number of layers on the results. For the architecture 1, the results of two hidden layers models are generally better than one hidden layer models, however, three hidden layers models are even worse. These results indicate that when using architecture 1 to predict number of collisions one hidden layer models do not learn pattern of the data well while three hidden layers models’ accuracy decrease due to the overfitting problem caused by too many parameters. For the architecture 2, it obtains the best result with one hidden layer. Such results indicate that using architecture 2 to make predictions in this work, one hidden layer is enough. The reason why the accuracy of two hidden layers and three hidden layers decrease is also due to overfitting problem. Then, we focus on the effect of hidden state size on testing results. According to Table 2, both architectures perform better on test data as the hidden state size increases until they achieve the best results. After reaching the best result, the results of the two architectures are not better with the increase of the number of parameters since overfitting problem. Finally, let consider the performances of different architectures. Architecture 2 is always better than architecture 1 with the same layers

and hidden state size before reaching the best performance. The best MSE and [TeX:] $$R^{2}$$ result of architecture 2 with one hidden layer is even better than architecture 1 with two hidden layers thanks to it handling more hidden states.

Then we turn our attention to discuss the performance of online training. We choose the parameters settings such that both SGD and EKF reach their best performance for fair comparison. To provide this fair setup, we have the following settings. For the LSTM structure, we choose architecture 2 with length of time steps as k = 5, number of LSTM layer n = 1, and hidden state size m = 10. For the EKF based online training algorithm, we set the initial error covariance as P = 1.0I, process noise as [TeX:] $$Q_{t}=0.001 I$$ , and measurement noise as [TeX:] $$R_{t}=0.25$$ . For the SGD based online training algorithm, we set the learning rate as [TeX:] $$\mu=0.01$$ . Therefore, the online training methods of EKF for LSTM is defined as:

where [TeX:] $$\Theta_{t}$$ denotes whole weights in the system.

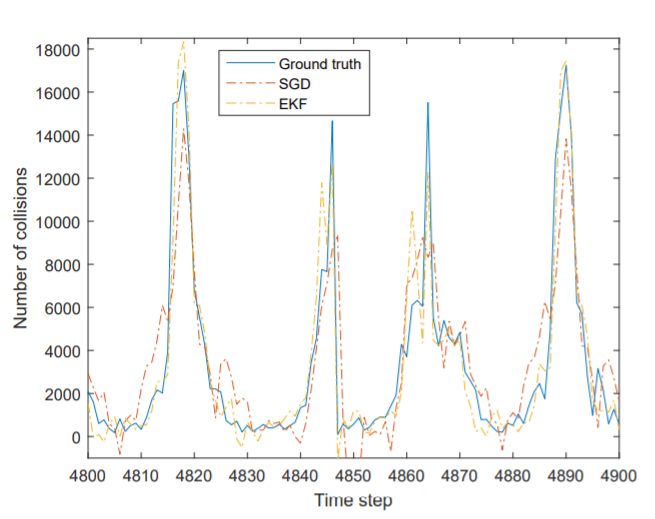

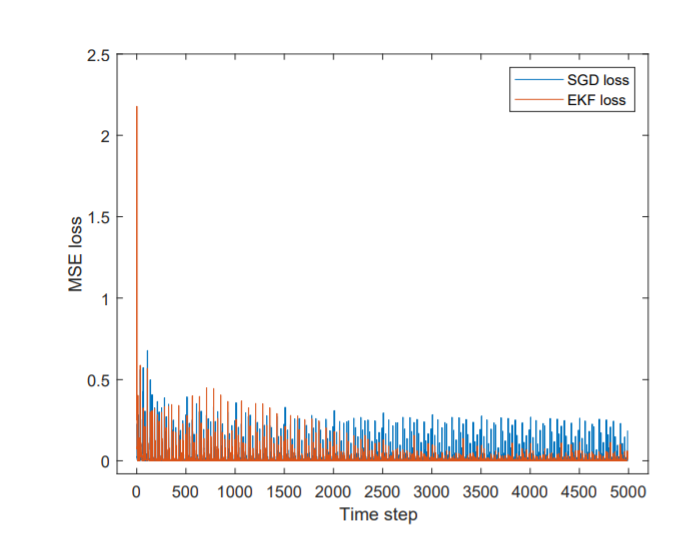

As depicted in Fig 8, the EKF converges to smaller MSE. It can be seen that it is more stable than SGD for on-line learning. The ground truth and the predicted values are depicted in Fig 9. Obviously, the predictions made by EKF trained on-line model are much better than SGD-trained model. In summary, EKF is more stable and accurate than SGD with online learning setting.

To illustrate the effectiveness of the proposed model, we compare the model to conventional time series models such as RNN, GRU, and LSTM. GRU is recently introduced special kind of

RNN and process defined as:

where [TeX:] $$W_{r}, W_{u}, \text { and } W_{t}$$ are weight matrices, and [TeX:] $$b_{r}, b_{u}, b_{h}$$ are bias vectors in the cell. Furthermore, [TeX:] $$x_{t}$$ is input vector, [TeX:] $$u_{t}$$ is update gate, and [TeX:] $$r_{t}$$ is reset gate. All these models with both architectures are trained by Adam and RMSprop with learning rate [TeX:] $$\mu=0.01$$ and stored the parameters with best validation performance. For fair comparison, we set parameters length of time steps k varying among [5, 10, 15, 20], number of layers n varying among [1, 2, 3], and hidden state size m varying among [5, 15, 20, 25, 30, 35, 40, 45, 50]. The best result of MSE and R2[TeX:] $$R^{2}$$ for each length of time steps of all these models are tabulated in Table 3. Since our combination of LSTM and EKF approach is generic, we also apply our approach to conventional RNN and GRU models.

As can be seen in Table 3, by adding EKF to these con-

Table 3.

Models | k = 5 | k = 10 | k = 15 | k = 20 | ||||
---|---|---|---|---|---|---|---|---|

[TeX:] $$\operatorname{MSE}\left(10^{-3}\right)$$ | [TeX:] $$R^{2}$$ | [TeX:] $$\operatorname{MSE}\left(10^{-3}\right)$$ | [TeX:] $$R^{2}$$ | [TeX:] $$\operatorname{MSE}\left(10^{-3}\right)$$ | [TeX:] $$R^{2}$$ | [TeX:] $$\operatorname{MSE}\left(10^{-3}\right)$$ | [TeX:] $$R^{2}$$ | |

RNN | 1.0820 | 0.98125 | 1.0275 | 0.98248 | 0.9924 | 0.98341 | 1.1918 | 0.97956 |

RNN-EKF | 1.0760 | 0.98136 | 1.0182 | 0.98264 | 0.9890 | 0.98346 | 1.1912 | 0.97957 |

GRU | 1.0122 | 0.98246 | 1.0335 | 0.98238 | 0.9983 | 0.98331 | 1.1346 | 0.98054 |

GRU-EKF | 0.9957 | 0.98275 | 1.0318 | 0.98240 | 0.9972 | 0.98333 | 1.1269 | 0.98067 |

LSTM | 1.0014 | 0.98265 | 0.9586 | 0.98365 | 0.9542 | 0.98405 | 0.9596 | 0.98354 |

LSTM-EKF | 0.9863 | 0.98291 | 0.9475 | 0.98384 | 0.9363 | 0.98435 | 0.9437 | 0.98381 |

ventional models the results are improved. When k among [5, 10, 15], the MSE of RNN and LSTM decrease as k increases. However, when k = 20, the accuracy of RNN and LSTM both decrease. GRU and GRU-EKF also achieve their best performance at k = 15. For each k, the performance of LSTM model is the best in the conventional time series models and the results of RNN and GRU are close. Our proposed LSTM-EKF model achieves the best results in every different k thanks to the performance of LSTM backbones. Finally, since the LSTM-EKF achieves its best performance at k = 15, it is a reasonable settings for this prediction task.

Deep learning is widely used in various industries with its powerful learning ability. However, in the field of IoT, especially the LPWAN that particularly sensitive to resource allocation, how to apply deep learning is worthy of further study. In this paper, we studied the collision problem in LPWAN system. We then propose LSTM-EKF model for this task. We also test with offline trained model and online trained model. Although offline trained model is much more accurate than online model, it learns the pattern or the distribution of current data. On the other hand, online trained model is more adaptable for changes of patterns but not stable as offline. However, we can see that EKF is much better than first-order gradient-based methods for training an online model. This model is much more stable than online model and can adapt to new subtle changes due to the EKF updating the parameters mapping hidden states to predict results and freeze weights of hidden layers. Based on our proposed prediction models, developers or network administrators can make pre-judgments and deal with allocation management problems. In the future, we would consider to construct a deep learning based resource allocation algorithms for LPWAN system.

Shengmin Cui received B.S. degree in Computer Science and Technology from Dalian Nationalities University in 2010, China. He acquired his Master’s degree in Computer Software and Theory from Yunnan University in 2013, China. At present, he is pursuing the Ph.D. degree in Computer and Software with Hanyang University, South Korea. His research focus includes Internet of things, wireless network resource management, machine learning, deep learning and reinforcement learning.

Inwhee Joe received the B.S. degrees in Electronics Engineering from Hanyang University, Seoul, South Korea, and the Ph.D. degree in Electrical and Computer Engineering from the Georgia Institute of Technology, Atlanta, GA, USA, in 1998. Since 2002, he has been a Falculty Member with the Division of Computer Science and Engineering, Hanyang University, Seoul. His current research interests include Internet of things, cellular systems, wireless power communication networks, embedded systems, network security, machine learning, and performance evaluation.
